AF116-30-11-13 - ABB 96A Contactor

AF116-30-11-13 - ABB 96A Contactor

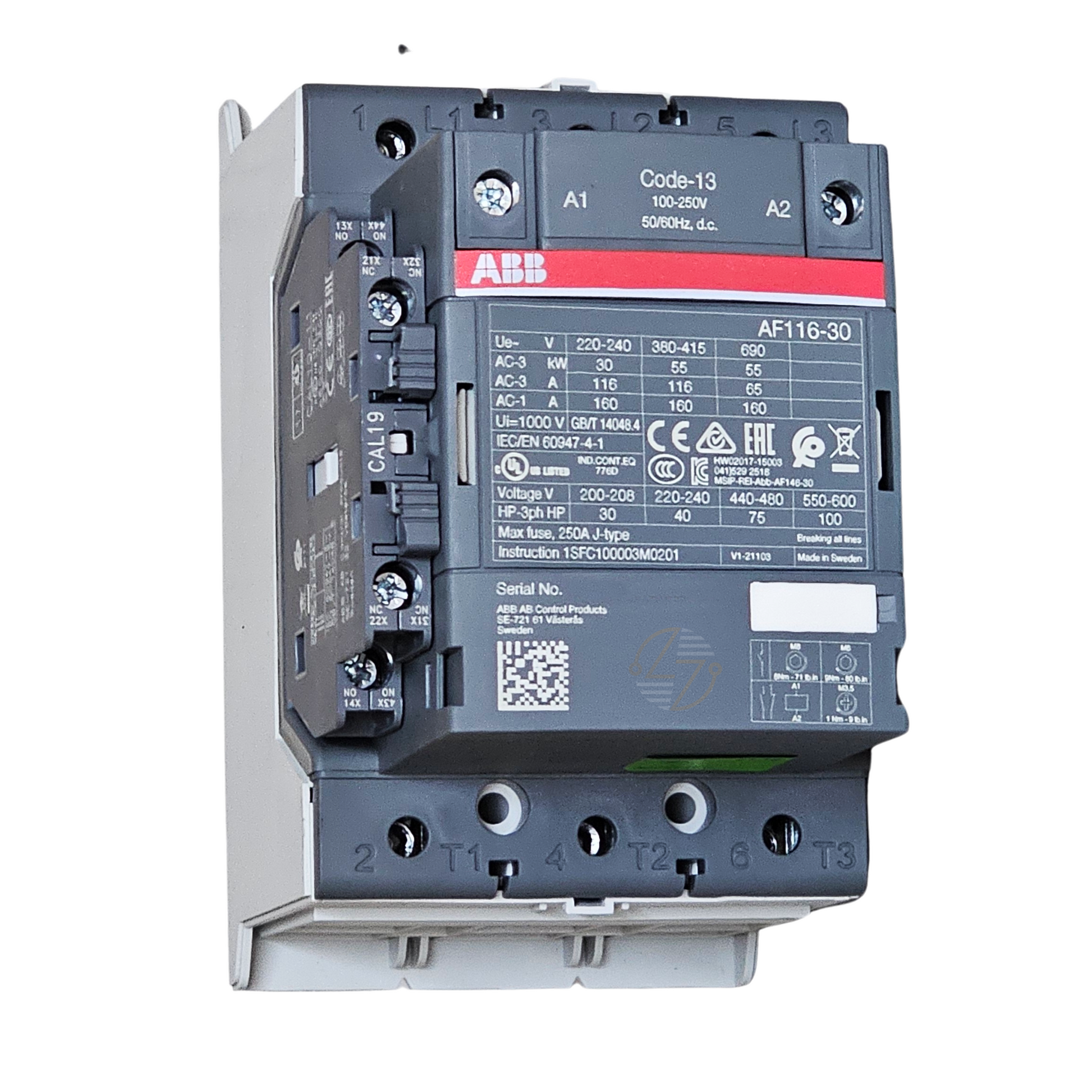

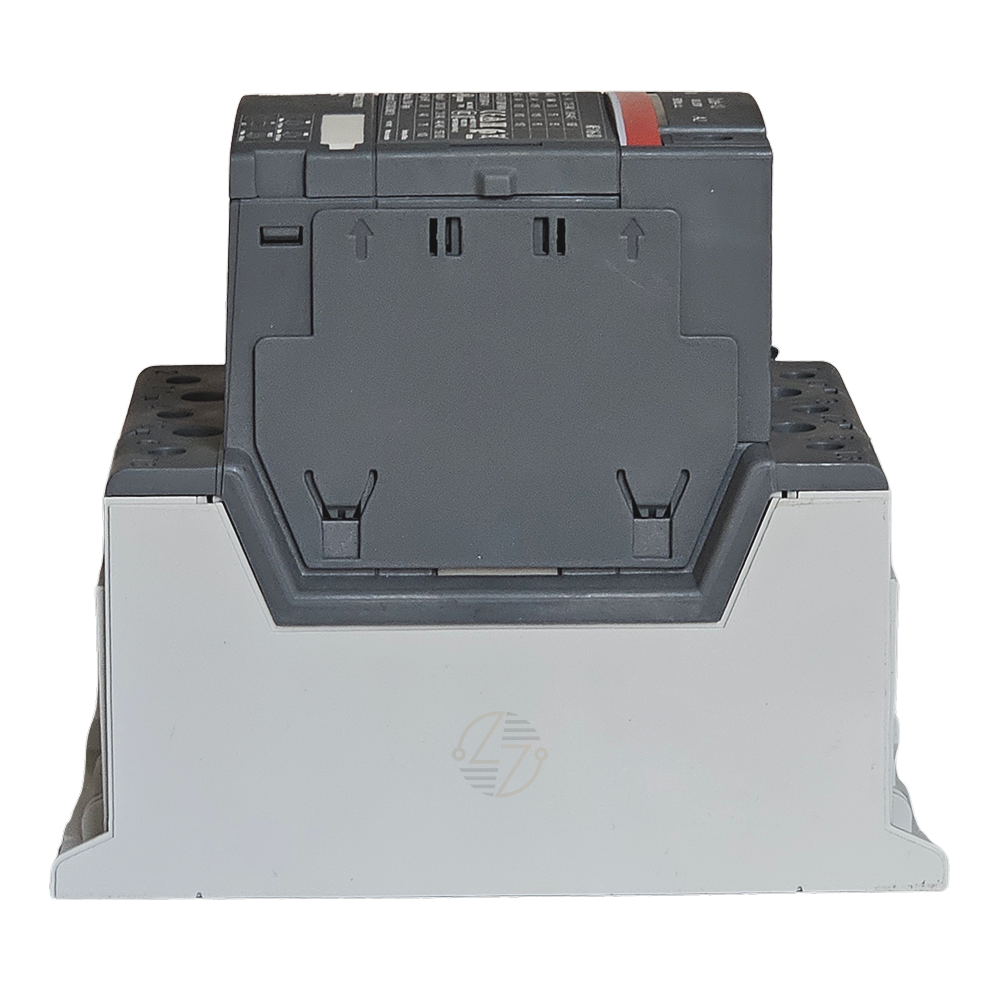

Engineered for demanding industrial motor control applications, the AF116-30-11-13 contactor from ABB delivers high-efficiency switching for motors up to 75 HP at 480V (UL) and 55 kW at 400V AC (IEC). Designed with ABB's advanced AF technology, this 3-pole contactor supports a wide control voltage range (100–250V AC/DC), ensuring stable operation even under voltage fluctuations—ideal for facilities facing inconsistent power conditions. With integrated surge suppression, double clamp terminals, and pre-mounted auxiliary contacts (1 NO / 1 NC), this block-type contactor simplifies panel design and maximizes reliability in control circuits handling up to 160A. Whether you're upgrading existing control cabinets or building new industrial automation systems, the AF116-30-11-13 provides a compact, sustainable, and energy-efficient solution with a proven 5-million-cycle mechanical lifespan.

Key Features and Benefits

• Versatile Control Voltage: Operates within a vast 100–250V AC/DC coil range, reducing the need for multiple SKUs.
• Built-in Surge Suppression: Enhances device protection and panel compactness.
• High Current Capacity: Supports up to 160A (AC-1) or 116A (AC-3) for robust power circuit control.
• Energy-Efficient Operation: Reduced coil consumption (only 3W holding for DC), lowering energy costs.
• Expandable & Modular: Easily extendable with add-on auxiliary blocks and accessories for flexible system customization.

Technical Specifications

• Rated Operational Voltage: Up to 690V AC / 600V UL
• Motor Ratings: 55 kW @ 400V (IEC) / 75 HP @ 480V (UL)
• Poles: 3 Main (NO), 1 Auxiliary NO + 1 NC
• Control Voltage Range: 100–250V AC (50/60 Hz) / DC
• Conventional Thermal Current: 160A @ 40°C (AC-1)
• Mechanical Durability: 5 million operations
• Operating Temperature: –40°C to +70°C
• Dimensions: 150 mm H × 90 mm W × 126 mm D
• Net Weight: 1.55 kg

Material Compliance and Certifications

• RoHS & REACH Compliant: Meets global environmental directives.
• UL, CE, UKCA, and CSA Certified: Trusted for compliance in international industrial standards.
• Sustainability Rating: 87.8% recyclability per EN45555; contains 37% recycled metal.
• ABB EcoSolutions Label: Indicates improved energy efficiency and reduced environmental footprint.

Where It Works Best

• The AF116-30-11-13 contactor is an ideal solution for heavy-duty industrial environments, including manufacturing plants, HVAC systems, mining operations, data centers, and commercial building automation. Its resilience against control voltage instability makes it particularly suited for use in mission-critical panels where reliability is non-negotiable.
