ADS36600HBFP - 600Amp Panel Switch

ADS36600HB - 600Amp Panel Switch

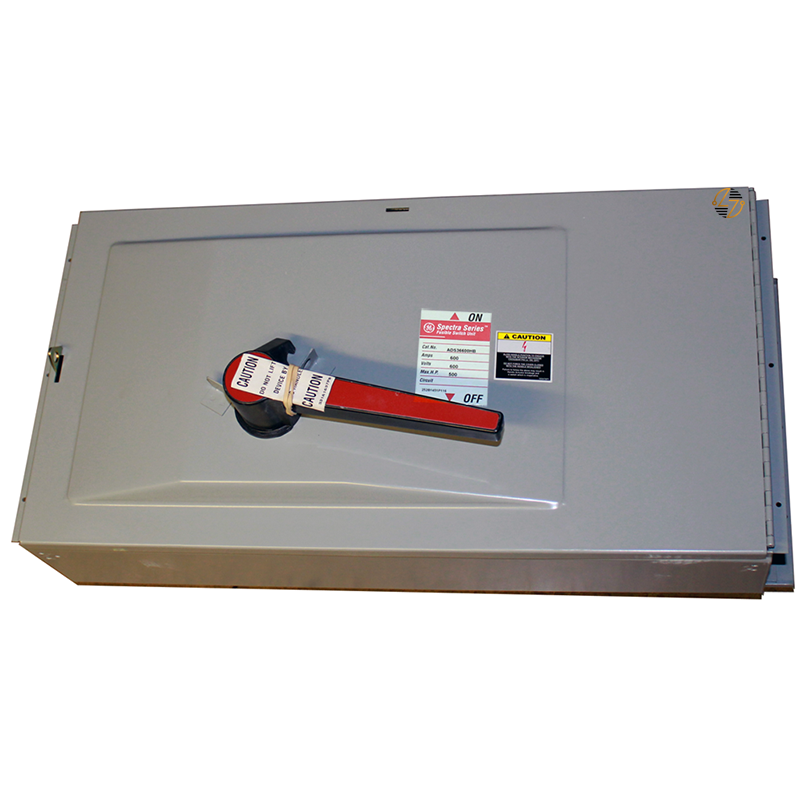

The General Electric ADS36600HB Panelboard Switch is a heavy-duty, industrial-grade fusible switch designed for high-performance electrical distribution systems. As part of GE's reputable Spectra Series, this 3-pole, 600-amp, 600-volt panelboard switch delivers superior circuit protection, seamless integration, and long-term reliability for demanding commercial and industrial environments. Its plug-in design allows for quick, hassle-free installation into Spectra Series switchboards while maintaining a robust safety profile with a high A.I.C. rating. Engineered with precision, the ADS36600HB accepts Class RK1 and RK5 fuses, providing flexible overcurrent protection to suit a wide range of applications. Built for large-scale power distribution, this fusible single-unit switch handles significant electrical loads and is a preferred choice for facilities requiring dependable and efficient circuit isolation and protection.

Key Features and Benefits

• Fusible Design: Accepts Class RK1 and RK5 fuses for advanced short-circuit and overload protection.
• Plug-In Mounting: Simplifies installation and maintenance in GE Spectra Series switchboards.
• Durable ADS Frame: Built to last with robust materials, ensuring performance and longevity.
• Safety Focused: High A.I.C. Rating enhances safety in high-fault current scenarios.

Technical Specifications

• Voltage Rating: 600V AC

• Amperage: 600A

• Number of Poles: 3

• Phase: 3-Phase

• Frame Type: ADS

• Short Circuit Current Rating: Up to 200kA at 480V

• Dimensions: 26.00" (L) x 13.50" (H) x 8.50" (D)

• Mounting: Plug-In Type for GE Spectra Series

• Fuse Classes: Accepts Class RK1 & RK5 fuses

• Side Filler Plates: Included

Material Compliance and Certifications

• Manufactured to meet stringent industrial safety and performance standards.

Suitability

• The GE ADS36600HB Panelboard Switch is ideal for: Industrial plants, commercial buildings, power distribution panels, facilities needing flexible, high-capacity, fusible circuit protection

Designed for professionals who demand reliability, safety, and easy integration into existing GE Spectra Series switchboards, this switch is a proven choice for robust power management.
