ADS36200JD - 200Amp Panel Switch

ADS36200JD - 200Amp Panel Switch

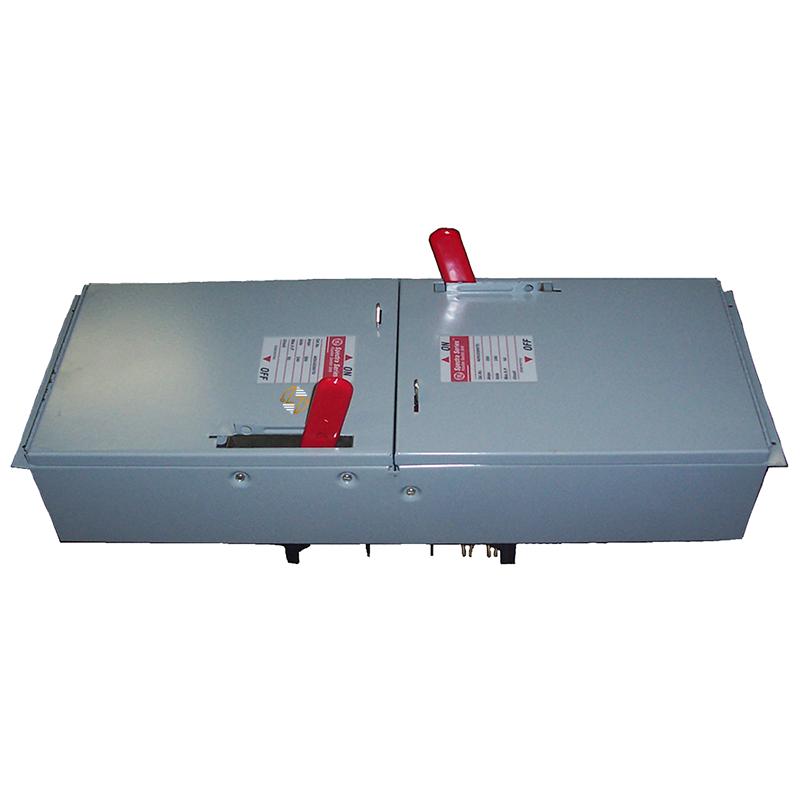

The General Electric ADS36200JD Panelboard Switch is a premium, industrial-grade fusible switch designed for seamless integration into GE's Spectra Series panelboards. Engineered for reliability and performance, this 200-amp, 600-volt, 3-pole panel switch offers dependable overcurrent protection and efficient power distribution in demanding environments. Its plug-in design enables quick installation and maintenance, making it an excellent solution for industrial facilities, commercial buildings, and infrastructure projects requiring high-performance electrical switching. The ADS36200JD’s robust construction, compatibility with Class J fuses, and twin-unit fusible layout make it an ideal upgrade or replacement unit for enhancing circuit protection.

Key Features and Benefits

• Three-Pole Configuration: Designed for three-phase power systems to ensure stable, balanced load distribution.
• Fusible Twin Unit Design: Built-in fuse protection using Class J fuses enhances safety and simplifies maintenance.
• Plug-In Mounting: Reduces installation time and labor with its Spectra Series plug-in compatibility.
• Durability: Built to withstand rigorous industrial conditions with high-grade materials and engineering.

Technical Specifications

• Amperage: 200A

• Voltage Rating: 600V AC

• Poles: 3

• A.I.C. Rating: Verified for 600V applications

• Frame Type: ADS

• Fuse Type: Accepts Class J Fuses

• Mounting Style: Plug-In (Spectra Panelboard Compatible)

• Dimensions: 26.00" (L) x 9.50" (H) x 8.50" (D)


Material Compliance and Certifications

• This product conforms to GE’s high manufacturing standards for industrial safety and performance. It is built to comply with industry regulations and guidelines for panelboard safety and electrical distribution systems.

Suitability

• Perfectly suited for commercial electrical systems, industrial environments, manufacturing plants, and facility upgrades. Whether you're replacing a failed unit or scaling up system capacity, the ADS36200JD ensures you get reliable protection, high compatibility, and peace of mind with GE’s trusted engineering.


Choose the General Electric ADS36200JD for premium overcurrent protection, quick plug-in installation, and superior performance in industrial-grade panelboards.
