ADS36100JD - 100Amp Panel Switch

ADS36100JD - 100Amp Panel Switch

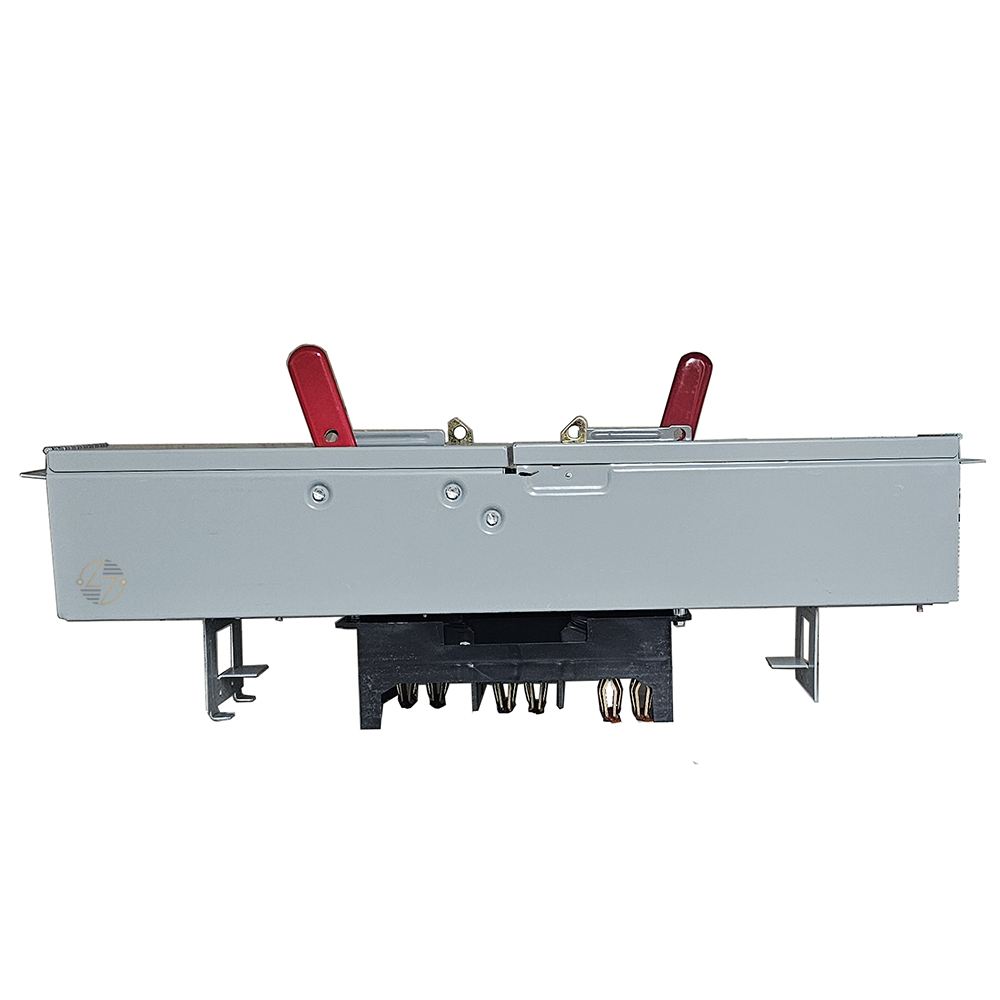

The General Electric ADS36100JD is a premium industrial-grade panelboard switch from GE’s Spectra Series, engineered for high-performance electrical distribution in demanding commercial and industrial environments. Designed with precision and built for durability, this fusible twin-unit panel switch features a 100-amp capacity, 600-volt rating, and a 3-pole configuration, making it a dependable solution for heavy-duty power management. Its plug-in type construction streamlines installation and maintenance, significantly reducing system downtime and labor costs. The ADS36100JD is compatible with Class J fuses, delivering enhanced protection and flexibility in circuit management.

Key Features and Benefits

• Plug-in Installation: Simplifies integration into existing systems, minimizing downtime and complexity.
• Fusible Twin Unit Configuration: Provides redundancy and enhanced circuit protection for mission-critical operations.
• Accepts Class J Fuses: Optimizes circuit protection and meets stringent electrical safety standards.

Technical Specifications

• Amperes: 100A
• Voltage: 600V
• Poles: 3
• A.I.C. Rating: 600V
• Frame Type: ADS
• Unit Type: Fusible Twin Unit, Plug-in Type Panel Switch
• Fuse Compatibility: Accepts Class J Fuses
• Dimensions: 26.00"L x 6.75"H x 8.50"D

Material Compliance and Certifications

• Manufactured by General Electric, the ADS36100JD adheres to industry-recognized standards for electrical performance and safety.

Suitability

• Perfectly suited for integration into large-scale commercial and industrial facilities, including factories, data centers, and distribution hubs. The ADS36100JD is ideal for applications requiring dependable circuit protection, scalable power distribution, and easy maintenance access. It’s especially valuable in settings that demand high amperage throughput with minimal risk and maintenance disruption.
