ADS32100HD - 100Amp Panel Switch

ADS32100HD - 100Amp Panel Switch

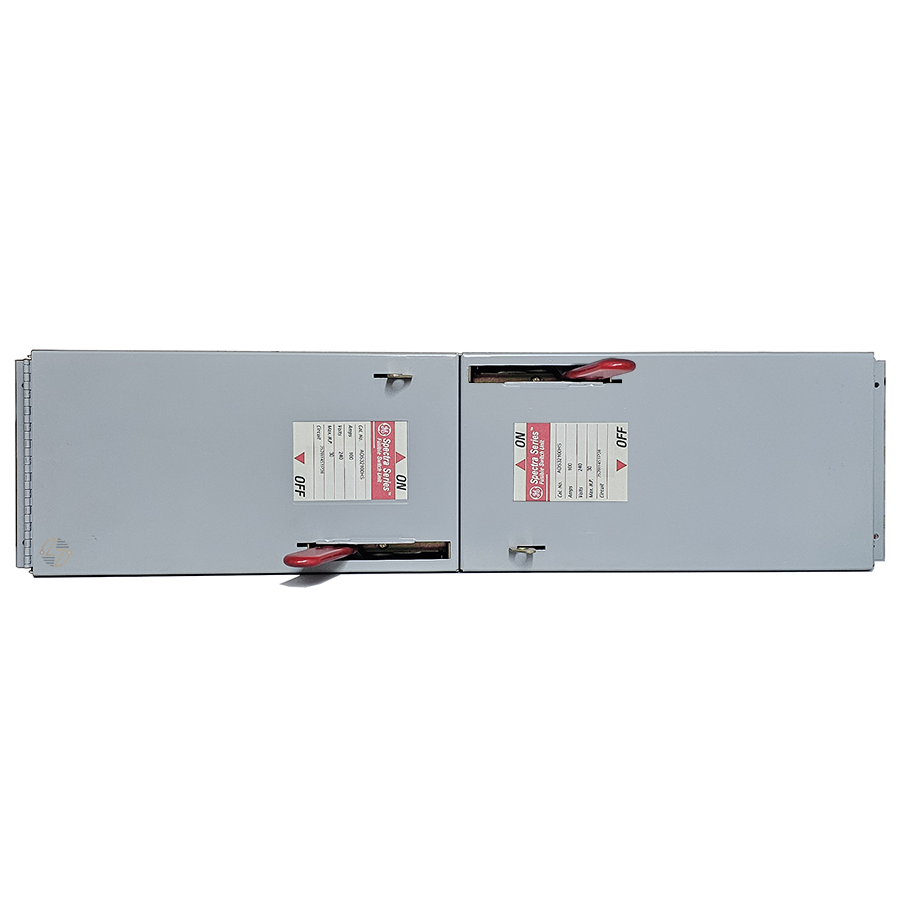

The General Electric ADS32100HD Panelboard Switch is a heavy-duty, 3-pole, 100-amp, 250-volt fusible twin unit meticulously designed to deliver superior performance in demanding electrical distribution systems. Engineered for use within GE’s Spectra Series panelboards, this plug-in type switch is ideal for commercial and industrial applications where durability, reliability, and space-efficiency are essential. The ADS32100HD accepts Class RK1 and RK5 fuses, offering adaptable overcurrent protection to meet diverse operational needs. Featuring a robust 250V A.I.C. rating, this panelboard switch ensures compliance with stringent industry standards for safety and efficiency.

Key Features and Benefits

• Twin Switch Design: Optimizes space by handling two circuits in a single plug-in unit.
• Flexible Fuse Compatibility: Supports Class RK1 and RK5 fuses for customized protection.
• Easy Integration: Plug-in design fits seamlessly into GE Spectra Series panelboards.

Technical Specifications

• Amperage Rating: 100 Amps
• Voltage Rating: 250 Volts
• Number of Poles: 3
• Dimensions: 26.00"L x 6.75"H x 8.50"D
• Frame Type: ADS
• Fuse Classes Supported: Class RK1 & RK5
• Configuration: Fusible Twin Unit, Plug-in Type

Material Compliance and Certifications

• The ADS32100HD is manufactured to meet or exceed all applicable electrical safety and performance standards. GE’s rigorous quality assurance ensures each unit provides reliable operation under heavy load conditions.

Suitability

• This panelboard switch is ideal for commercial and industrial facilities requiring safe, efficient, and flexible power distribution. It’s especially suited for environments where maximizing space and uptime are critical.
