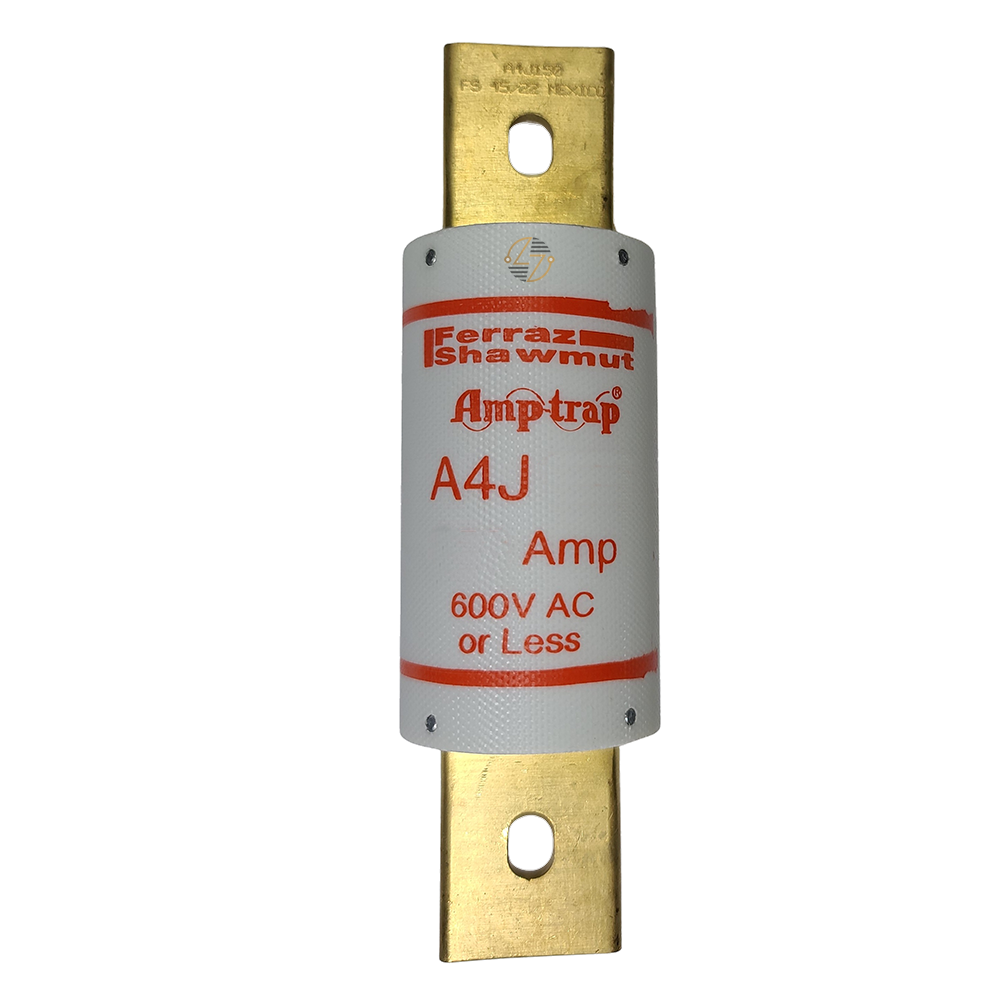

A4J110 - 110 Amp Fuse

A4J110 - 110 Amp Fuse

The Amp-Trap® A4J110 Class J Fast-Acting Fuse offers superior protection for a wide range of electrical applications, delivering critical current-limiting capabilities in an easy-to-install blade fuse format. With a robust 110A ampere rating and a voltage rating of 600VAC/300VDC, the A4J110 fuse is engineered to respond quickly, preventing excessive current flow and safeguarding your systems from damage. Designed for both AC and DC circuits, this high-performance fuse guarantees effective protection, even in demanding electrical environments. It’s the ideal solution for applications requiring fast response times and maximum safety against electrical faults.

Key Features and Benefits

• Fast-Acting: Quickly responds to overloads or short circuits, ensuring immediate protection.
• Superior Current-Limiting: Limits the amount of energy released during a fault, reducing the risk of damage to sensitive equipment.
• High Breaking Capacity: Capable of withstanding up to 200 kA short-circuit currents for maximum reliability in critical applications.
• Versatile Voltage Rating: Rated for use in both 600VAC and 300VDC applications, making it ideal for a variety of electrical systems.
• Easy Installation: Blade-style terminals with brass alloy connections ensure a secure and efficient mounting process.

Technical Specifications

• Ampere Rating: 110 A

• Rated Voltage (AC): 600 V

• Rated Voltage (DC): 300 V

• Frequency: 50/60 Hz

• Mounting Type: Clip

• Breaking Capacity: 200 kA at 600 VAC

• Fuse Class: Class J

• Fuse Speed/Characteristic: Fast-Acting

• Connection Type: Blade Terminal

• Product Dimensions: Diameter 41.3 mm, Length 146 mm
• Weight: 0.342 kg

• Packaging: 1 Fuse per Sell Pack


Material Compliance and Certifications

• ROHS Compliant: Meets stringent environmental requirements for safe and responsible manufacturing.

Suitability

• This fuse is perfect for a wide range of industrial, commercial, and residential applications that demand fast and reliable overcurrent protection. Whether for AC or DC circuits, its superior performance in fault protection makes it an essential component in electrical systems where safety and efficiency are paramount. Ideal for use in motor control centers, industrial machinery, and critical power distribution systems, the A4J110 fuse offers exceptional performance for both low voltage and high-demand circuits.


Choose the Amp-Trap® A4J110 fuse for reliable, fast-acting protection in your most demanding electrical systems.
