A3T600 - 600Amp Fuse

A3T600 - 600Amp Fuse

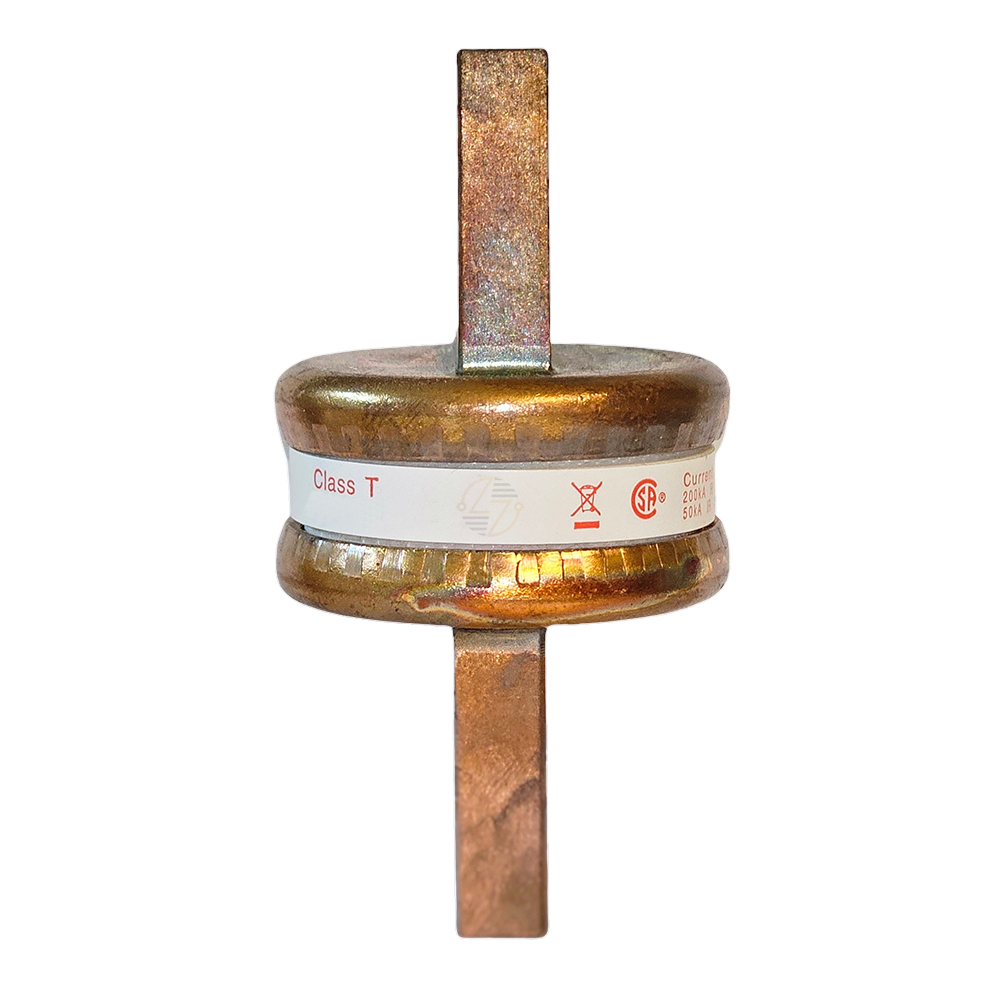

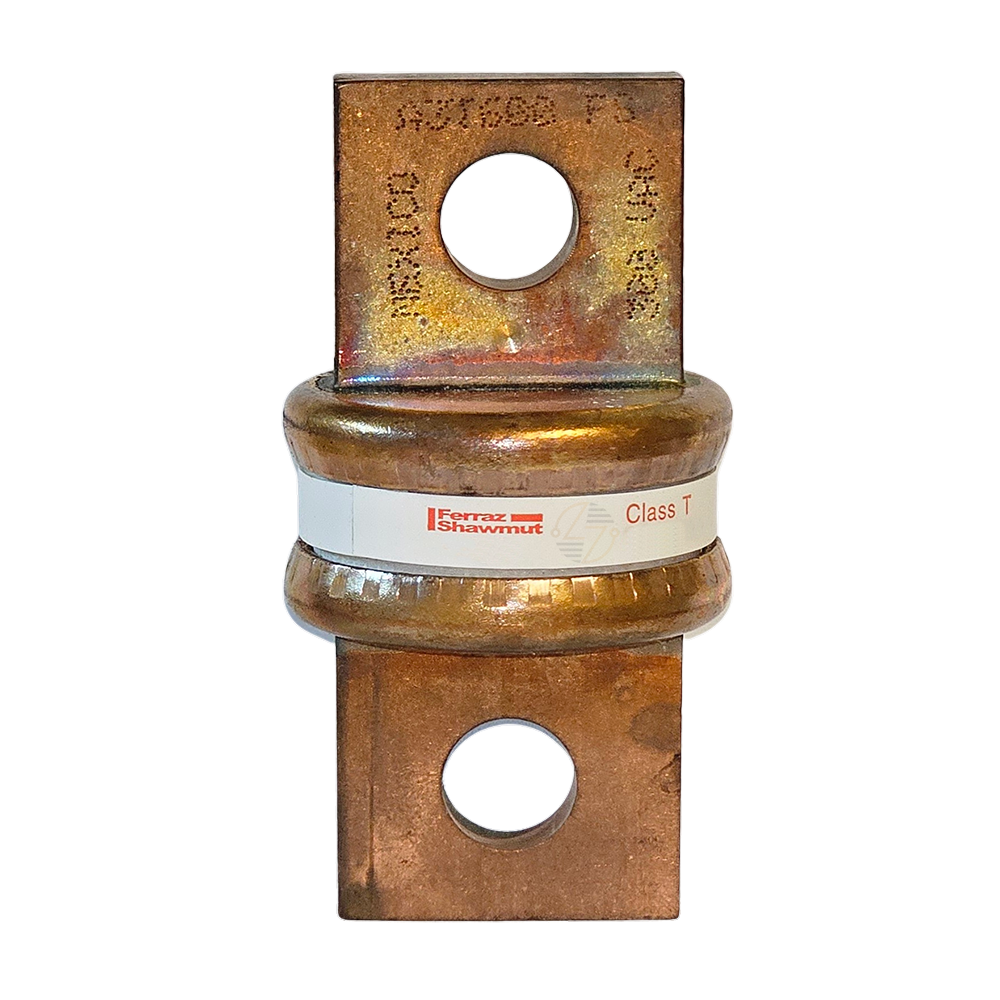

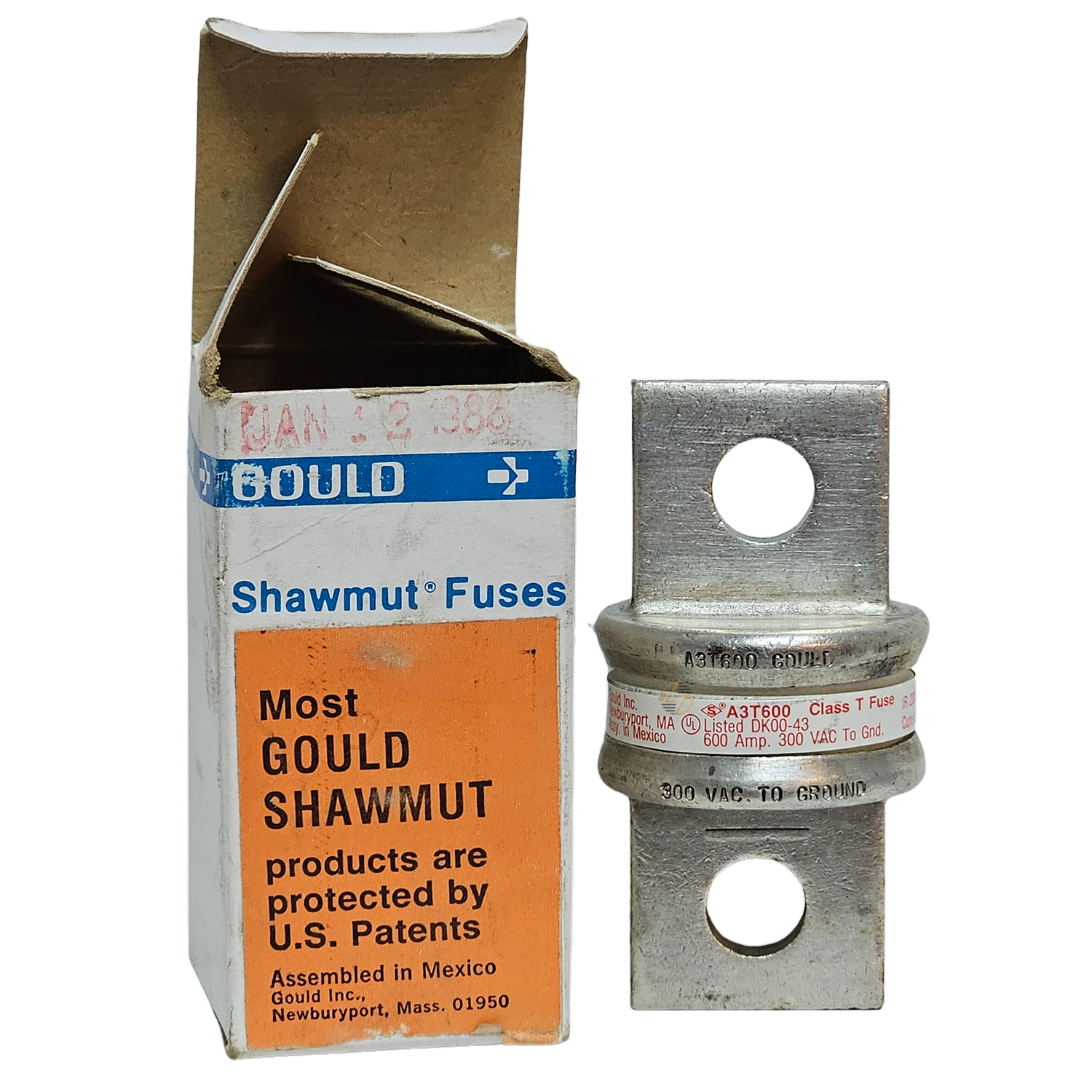

The Mersen A3T600 Amp-Trap® Class T Fast-Acting Fuse delivers exceptional overcurrent protection in a compact form factor, making it ideal for modern electrical systems where space and performance are critical. With a current rating of 600A and voltage ratings of 300VAC and 160VDC, this fuse is engineered to interrupt high fault currents swiftly, minimizing equipment damage and downtime. Its unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capabilities, ensuring system safety and reliability.

Key Features and Benefits

• High Interrupting Capacity: Rated at 200kA AC and 50kA DC, the A3T600 ensures robust protection against high fault currents.
• Compact Design: The small physical size allows for greater design flexibility and space-saving installations.
• Fast-Acting Performance: Quickly responds to overcurrent conditions, minimizing potential damage to equipment.
• Permanent Identification: Blade-stamped catalog numbers facilitate easy and accurate identification.
• Superior Material Construction: Glass melamine body offers excellent thermal and mechanical stability.

Technical Specifications

• Catalog Number: A3T600

• Series: A3T - Class T - Fast-Acting

• Current Rating: 600 Amps

• Voltage Ratings: 300VAC / 160VDC

• Frequency: 50/60 Hz

• Interrupting Rating: 200kA AC / 50kA DC

• Body Material: Glass Melamine

• Mounting Style: Bolt-On

• Terminal Type: Blade

• Dimensions: Length: 3.06 inches (77.7 mm); Diameter: 1.62 inches (41.1 mm)

• Product Weight: 0.2268 kg

• UPC Code: 782001890315


Material Compliance and Certifications

• UL Listed: Standard 248-15, File E2137
• CSA Certified: Standard C22.2 No. 248.15
• RoHS Compliant: Yes
• DC Listed: UL Standard 248

Suitability

• The A3T600 fuse is ideal for protecting circuits in load centers, panelboards, switchboards, circuit breakers, and metering centers. Its fast-acting nature and high interrupting capacity make it suitable for applications where space is limited, and reliable overcurrent protection is essential.
