A3T1000 - 1000 Amp Fuse

A3T1000 - 1000 Amp Fuse

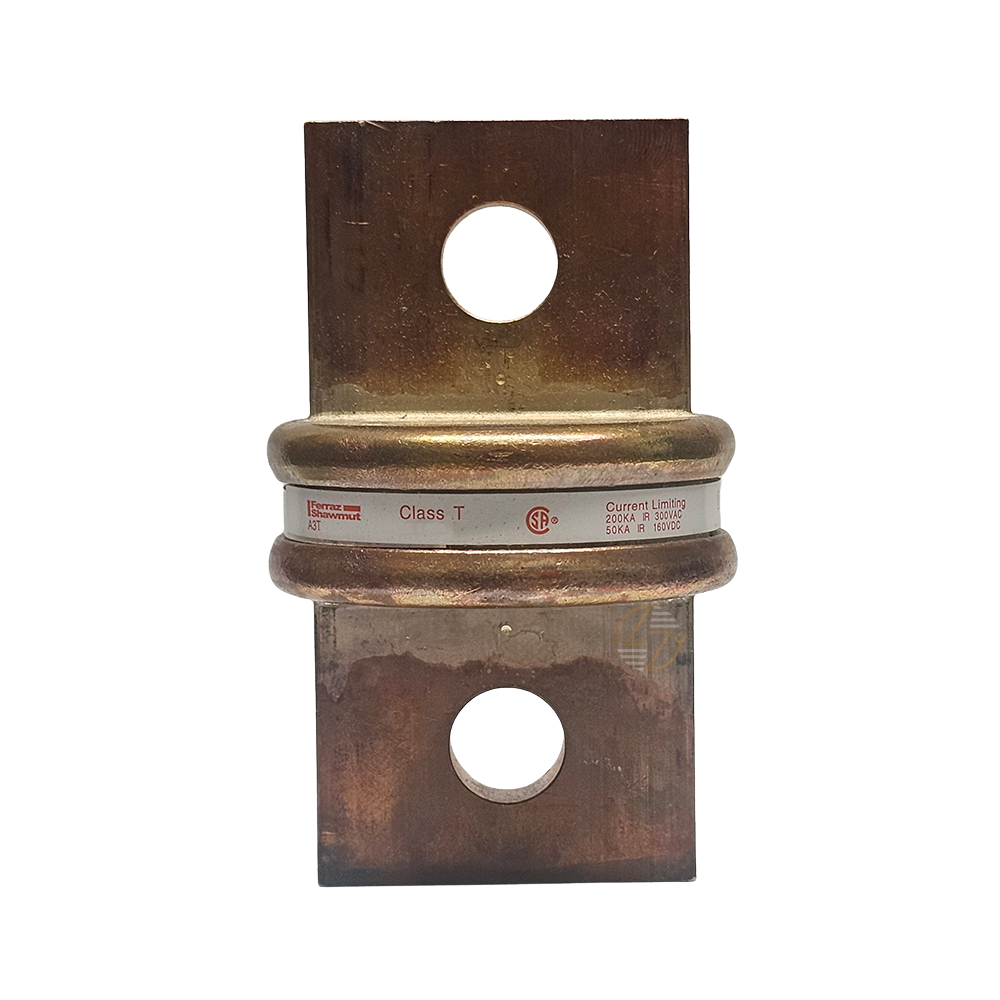

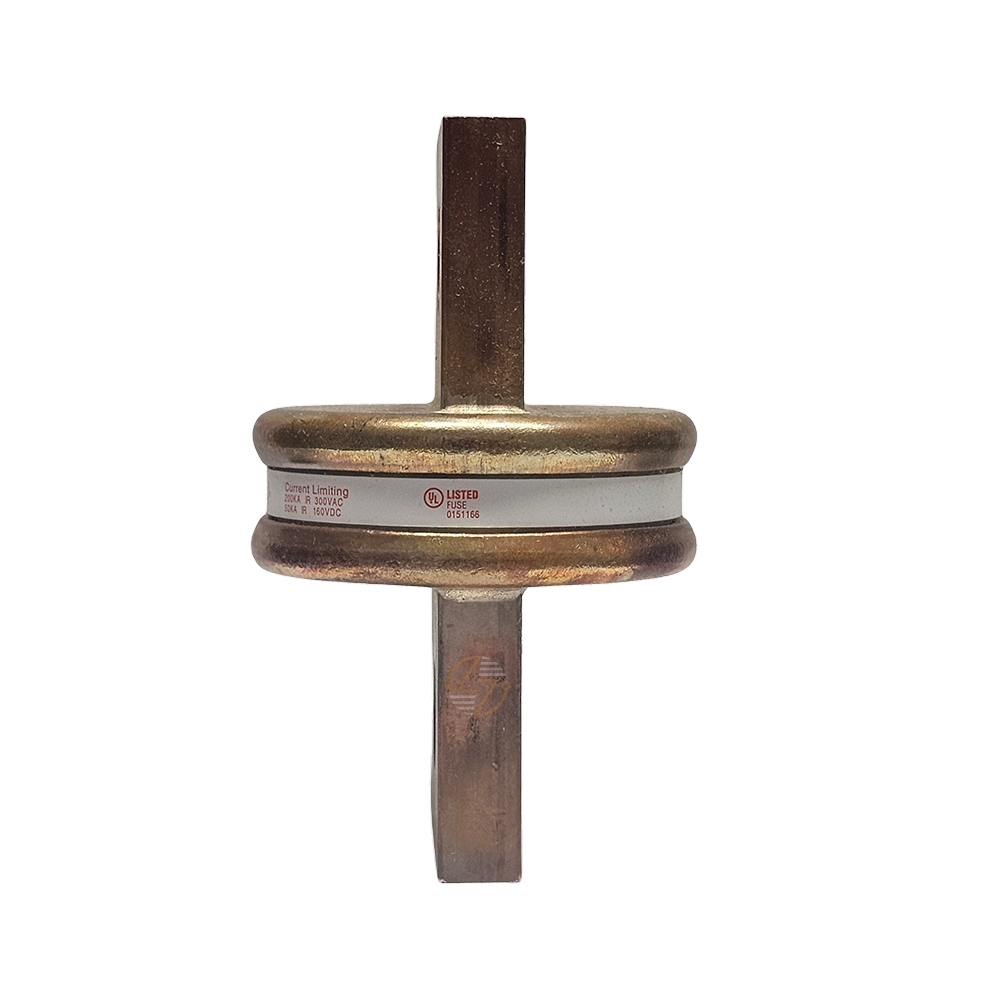

The A3T1000 is a premium, fast-acting fuse designed for high-performance applications where both high current-limitation and compact size are crucial. Engineered with precision, this Class T Fuse combines cutting-edge technology to ensure maximum protection for electrical systems across a wide range of industries. Whether you're working with AC (300V) or DC (160V) circuits, the A3T1000 provides reliable and fast-acting protection. It features a blade terminal for easy bolted mounting, and its current-limiting capability significantly reduces the risk of system damage due to short circuits or overloads.

Key Features and Benefits

• High Current-Limiting Capacity: Reduces the possibility of system damage caused by short circuits or overloads.
• Compact Design: Small physical size ensures efficient space utilization while providing optimal performance.
• Fast-Acting Fuse: Responds quickly to overcurrent conditions, minimizing the potential for damage to electrical equipment.
• Permanent Identification: Catalog number stamped on the fuse blade for easy traceability and future reference.
• Glass Melamine Body: Provides superior dimensional stability, ensuring long-lasting performance in demanding environments.

Technical Specifications

• Rated Voltage (AC): 300V UL

• Rated Voltage (DC): 160V UL

• Ampere Rating: 1000A

• Speed/Characteristic: Fast-Acting

• Mounting: Bolted

• Breaking Capacity (I1): 200kA

• Frequency (Hz): 50/60Hz

• Connection/Terminal Material: Copper

• Product Dimensions: 2.52 inches (Diameter) x 4 inches (Length)

• Product Weight: 1.45 lbs


Material Compliance and Certifications

• ROHS Compliant: Yes, ensuring that the fuse meets international standards for safety and environmental responsibility.
• UL Listed: The A3T1000 is UL-approved, meeting rigorous safety standards for electrical components.
• CSA Certified: The fuse is also CSA certified, verifying its compliance with Canadian safety regulations.

Suitability

• The A3T1000 is perfect for applications requiring high current-limiting protection and fast response times. It is ideal for both AC and DC systems, offering versatility for use in various industries, including residential, commercial, and industrial applications. This fuse is especially suitable for use in motor protection, transformers, UPS systems, and solar installations, among other sensitive electrical systems that require optimal circuit protection.


By investing in the A3T1000, you’re ensuring that your electrical systems remain safeguarded, operational, and secure under high-risk conditions.
