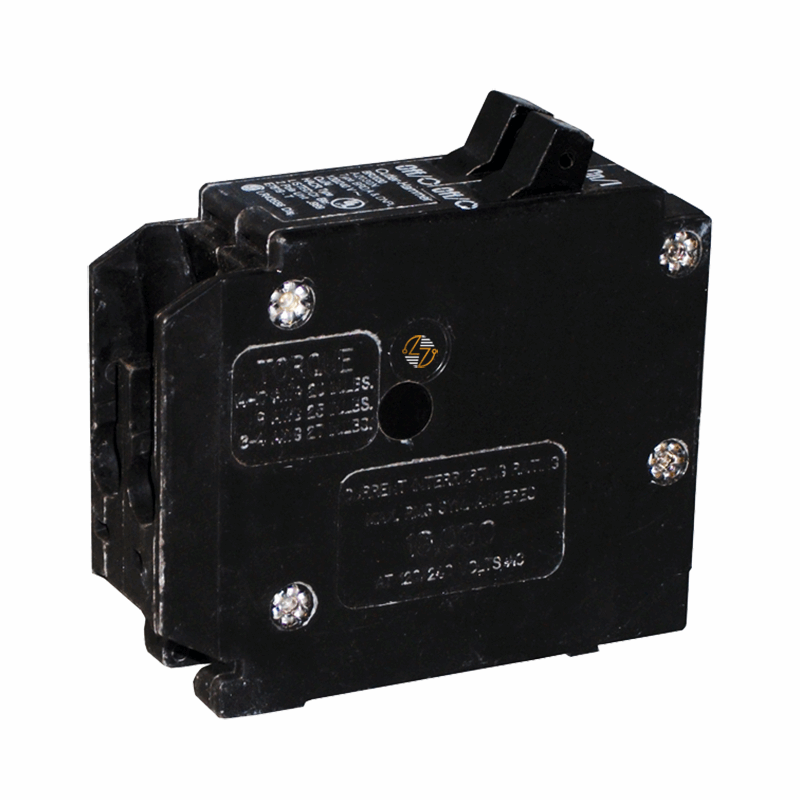

A2015N - Duplex 15/20 Circuit Breaker

A2015N - Duplex 15/20 Circuit Breaker

The A2015N duplex circuit breaker is a convenient way to add two protected circuits while using only one breaker space in the panel. Designed with both 20 amp and 15 amp protection in a compact duplex format, this Type A plug-on breaker is commonly used in residential and light commercial electrical systems where saving panel space matters.

Its Class Non-CTL design and no rejection tab feature make it a solid option for compatible older load centers and replacement applications. The A2015N is also HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment. Whether you’re replacing a worn breaker or updating an existing panel, this breaker is built to provide dependable protection against overloads and short circuits while helping keep electrical systems operating safely.

Key Features and Benefits

• Duplex design combines 20 amp and 15 amp circuit protection in one breaker
• Plug-on mounting style allows for quick installation
• HACR rated for HVAC and refrigeration applications
• Class Non-CTL construction for compatible legacy panelboards
• No rejection tab feature for added application flexibility
• Compact footprint helps maximize panel space
• Suitable for residential and light commercial electrical systems

Technical Specifications

• Part Number: A2015N

• Type: Type A

• Poles: Duplex

• Amperage: 20/15 Amps

• Voltage Rating: 120VAC

• A.I.C. Rating: 10kA @ 120VAC

• Mounting Style: Plug-On

• Classification: Class Non-CTL

• Special Features: HACR Rated, No Rejection Tab Feature

• Dimensions:
  • Width: 1.00" W
  • Height: 3.13" H
  • Depth: 2.56" D

Material Compliance and Certifications

• HACR rated for approved heating and cooling applications
• Manufactured to meet applicable industry standards for circuit protection
• Designed for dependable thermal-magnetic trip performance
• Compatible with approved Type A load centers and panelboards

Where It Works Best

• Residential breaker panels
• Older compatible load centers requiring Non-CTL breakers
• Apartment and multi-unit housing electrical systems
• Light commercial buildings and office spaces
• HVAC and refrigeration circuits
• Electrical maintenance and replacement projects
• Service panel upgrades and branch circuit additions
