A1515N - Duplex 15/15 Circuit Breaker

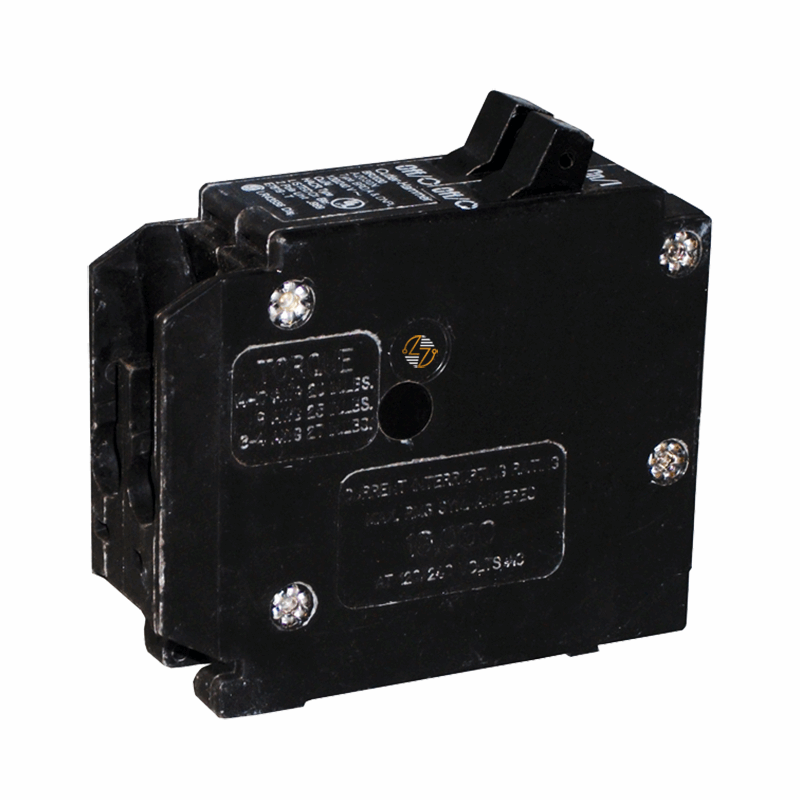

A1515N Duplex 15/15 Circuit Breaker

Introducing the A1515N Circuit Breaker - a premium solution designed for optimal electrical safety and reliability. Engineered with precision and adhering to the highest industry standards, the A1515N is a Type A 1-inch plug-on thermal magnetic circuit breaker, ideal for both residential and light commercial applications. This dual 15-amp, duplex breaker operates at 120V with an interrupt rating of 10 kAIC, ensuring robust protection against overcurrents and short circuits.

Key Features and Benefits

• Dual 15-Amp Protection: Provides reliable protection for two circuits with a single breaker, saving space and simplifying installation.
• Thermal Magnetic Operation: Combines thermal and magnetic trip mechanisms to protect against both overloads and short circuits.
• High Interrupt Rating: Rated at 10 kAIC, this breaker is capable of interrupting high levels of fault current, enhancing safety.
• Versatile Use: Compatible with #14-4 AWG copper or aluminum conductors, offering flexibility in wiring options.

Technical Specifications

• Amperage Rating: 15-15 A
• Voltage Rating: 120V
• Interrupt Rating: 10 kAIC
• Dimensions: 1.00"W x 3.13"L x 2.56"D
• Weight: 1.75 lb
• Poles: Duplex
• Wire Size Compatibility: #14-4 AWG Cu/Al
• Additional Features: HACR rated, Class Non-CTL, Plug-on with NO Rejection Tab Feature

Material Compliance and Certifications

• The A1515N Circuit Breaker is designed to meet stringent safety and quality standards. It is compliant with Federal Specifications Classification WC375 and UL 489 certified, ensuring it meets the necessary regulatory requirements for use in various electrical installations.

Suitability

• The A1515N is an excellent choice for homeowners and contractors looking to ensure the safety and efficiency of their electrical systems. Whether you're upgrading an existing load center or setting up a new installation, this breaker provides the reliability and performance needed for critical circuit protection.

Elevate your electrical system's safety with the A1515N Circuit Breaker ‰ÛÒ a trusted solution from a global leader in power management solutions.
