A10GN0 - Cutler-Hammer Contactor

A10GN0  - Cutler-Hammer Contactor

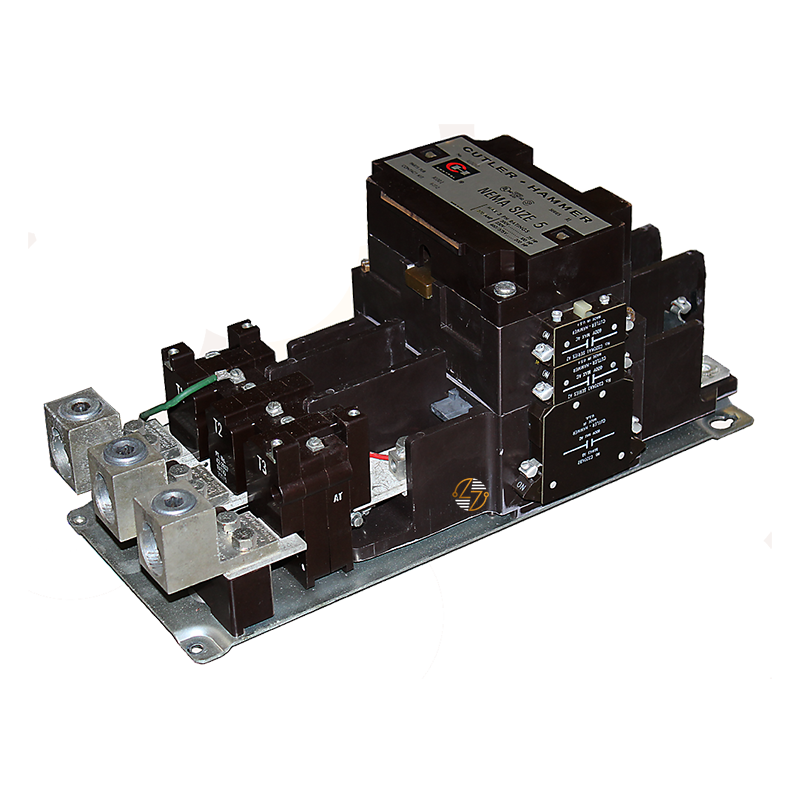

The Cutler‑Hammer A10GN0 is a robust, high-performance motor starter (NEMA Size 5) engineered to deliver rock-solid control for large three‑phase motors in demanding industrial and commercial settings. Rated at 270 A continuous duty and up to 600 V AC, this Citation Series contactor effortlessly powers equipment up to 200 HP at 460/575 V—making it an outstanding choice for conveyors, compressors, crushers, and heavy machinery. The integrated 110/120 V AC coil ensures easy hookup to standard control circuits, making it a breeze to install in either retrofit or new control panel setups.

Key Features and Benefits

• High Ampacity (270 A continuous duty) ensures reliable performance under heavy industrial loads.
• Versatile voltage compatibility—operates on systems up to 600 VAC, offering flexibility across diverse setups.
• Standard control coil voltage (110/120 V AC) simplifies wiring and upgrade processes.
• Built for harsh environments—solid construction resists wear and tear in rugged applications.
• Smooth panel integration—mounts securely within control enclosures for a clean, professional installation.
• Proven Citation Series pedigree—trusted by OEMs and maintenance teams for consistent, long-lasting operation.

Technical Specifications

• NEMA Size: 5
• Continuous Current: 270 A
• Max Voltage: 600 V AC
• Horsepower Ratings:
  • 75 HP @ 200 V AC
  • 100 HP @ 230 V AC
  • 200 HP @ 460/575 V AC
• Coil Voltage: 110/120 V AC
• Phase: 3‑phase
• Dimensions: Approx. 18″ L × 15″ W × 38″ H
• Weight: Approx. 150 lbs

Material Compliance and Certifications

• UL Listed — Meets U.S. national safety standards
• CSA Certified — Approved for Canadian industrial use
• CE Marked — Compliant with European safety directives
• RoHS Compliant — Free from hazardous substances, environmentally safe

Suitability

• Engineered for tough, mission-critical roles, the A10GN0 thrives in applications such as:
  • Compressors
  • Heavy-duty conveyors
  • Crushers and shredders
  • Industrial fans and blowers
• This contactor is a smart pick for OEMs, electrical contractors, and maintenance teams seeking dependable, high-capacity motor control across a variety of heavy industrial settings.
