999315 - 15 Amp Circuit Breaker

999315 - 15 Amp Circuit Breaker

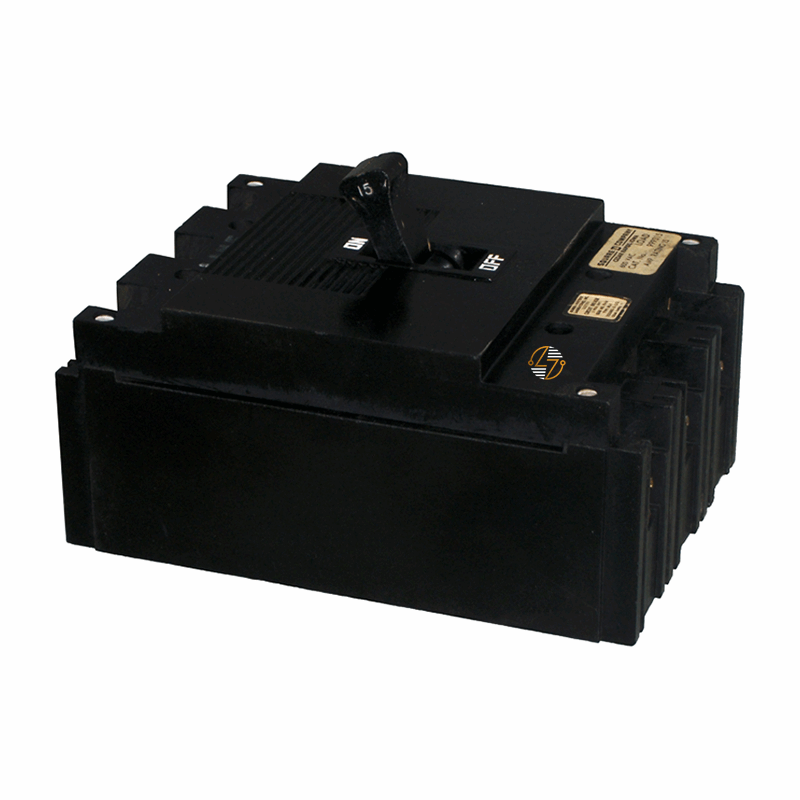

The 999315 molded case circuit breaker is the kind of part you go looking for when you just need something that matches what’s already there. It’s a 15 amp, 3-pole breaker rated for 600VAC, built on the ML-1 (F-Frame)—a format that’s been used in plenty of commercial and industrial setups over the years. It uses a thermal-magnetic trip, so it handles overloads and short circuits the way you’d expect. Nothing fancy about it. It trips when it should, and that’s really the point. If you’re working in an existing panel or dealing with older equipment, having the right frame and rating saves time. This is one of those breakers that fits into place without turning the job into something bigger than it needs to be.

Key Features and Benefits

• 15 amp rating for standard circuit protection
• 3-pole design for three-phase systems
• Rated for use up to 600VAC
• Thermal-magnetic trip for overload and short circuit protection
• ML-1 (F-Frame) sizing for compatibility with existing equipment
• Straightforward installation in matching panels
• Built for long service life in everyday use

Technical Specifications

• Part Number: 999315

• Poles: 3

• Amperage: 15A

• Voltage Rating: 600VAC

• Frame Type: ML-1 (F-Frame)

• Trip Type: Thermal-Magnetic

• Dimensions:
  • 4.50” W x 6.50” H x 3.00” D
• Weight: 7 lbs


Material Compliance and Certifications

• Industry Standards: Made with materials typically used in molded case circuit breakers for commercial and industrial applications. Intended for use in systems that follow standard electrical codes. It’s always a good idea to double-check compatibility with your specific setup before installation.
• UL Standards: When installed according to electrical codes, you can have confidence that this unit adheres to expected construction and compliance benchmarks.


Where It Works Best

• Existing ML-1 / F-frame breaker setups
• Commercial and industrial electrical panels
• Three-phase systems up to 600VAC
• Maintenance or repair jobs where the original specs matter
• Circuits needing 15 amp protection
