9065TR0.55 - Square D Thermal Overload Relay

9065TR0.55 - Square D Thermal Overload Relay

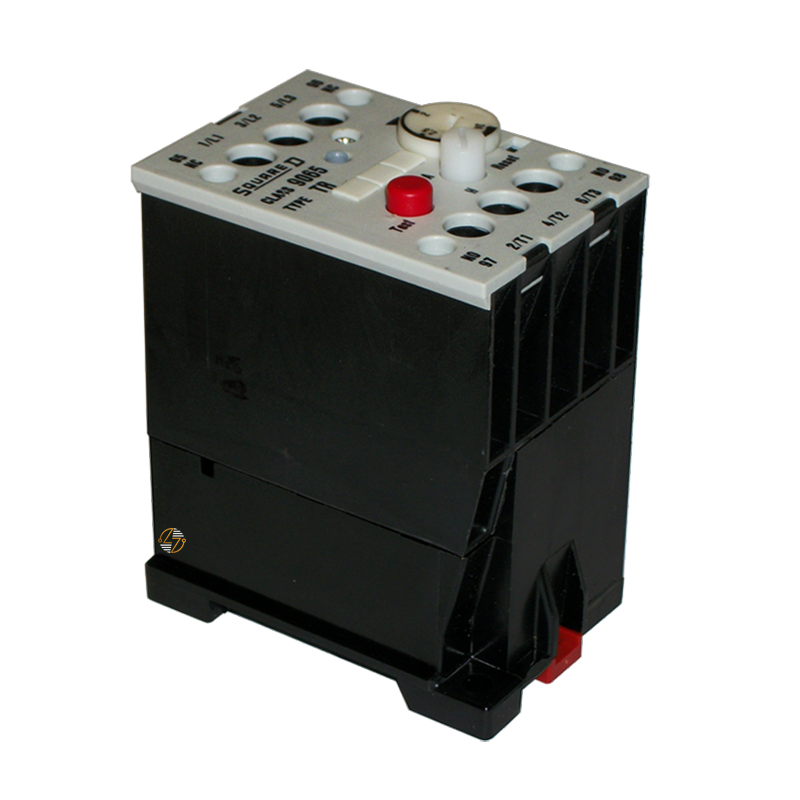

Discover dependable motor protection in a compact package. The Square D 9065TR0.55 is a solid‑state thermal overload relay from Schneider Electric’s renowned Motor Logic (Class 9065) line. Designed for three‑phase motors with a full‑load current between 0.55–0.82 A, this device handles up to 600 VAC (and 300 VDC) and delivers ambient‑insensitive overload detection—making it perfect for HVAC equipment, pumps, conveyors, or OEM control panels

Key Features and Benefits

• Precisely adjustable trip range (0.55–0.82 A): Ideal for small motor applications needing finely tuned overload protection.
• Accurate solid‑state detection: ±2% trip accuracy, with fast response and minimal sensitivity to ambient temperature fluctuations
• Ultra‑compact DIN‑rail design: At just about 0.55 lb (0.25 kg), it installs easily into tight panel spaces—even retrofitting existing NEMA Size 00–1 Type S starter setups.
• Built‑in auxiliary contacts: Includes one Normally Open (NO) and one Normally Closed (NC) contact for alarm or interlock wiring.
• Trip‑free self‑powered operation: Doesn’t require an external power source and will reliably cut power under fault—even if reset is pressed.

Technical Specifications

• Current Adjustment Range: 0.55–0.82 A

• Voltage Rating: Up to 600 VAC / 300 VDC

• Poles: 3‑phase solid‑state overload

• Auxiliary Contacts: 1 NO + 1 NC

• Mounting Method: DIN‑rail or panel screw mount

• Weight: ~0.55 lb (0.25 kg)

• NSN: 5945‑01‑361‑6952

Material Compliance and Certifications

• Compliance: Developed in compliance with Schneider Electric’s Class 9065 Motor Logic standards, offering consistent industrial‑grade build quality.
• Certifications: Listed with UL, CSA, and CE, meeting major regulatory safety certifications, plcproducts.com.
• NSN Compliance: Carrying the NATO NSN 5945‑01‑361‑6952, this unit meets federal and military sourcing requirements for reliability and traceability.

Suitability

• Use it in small motor control setups—for example:

  • HVAC fans, blowers, or chillers
  • Water pumps, small compressors, or conveyor drives
  • OEM panels or compact control systems where space is limited
  • Retrofits into existing Square D NEMA Size 00–1 Type S starter assemblies
• The 9065TR0.55 is especially well‑suited to environments demanding precise protection in a minimal footprint—plus the built‑in alarm contact options make it great for automation or troubleshooting integration.
