9050JCK16V20 - Square D Time Delay Relay

9050JCK16V20 - Square D Time Delay Relay

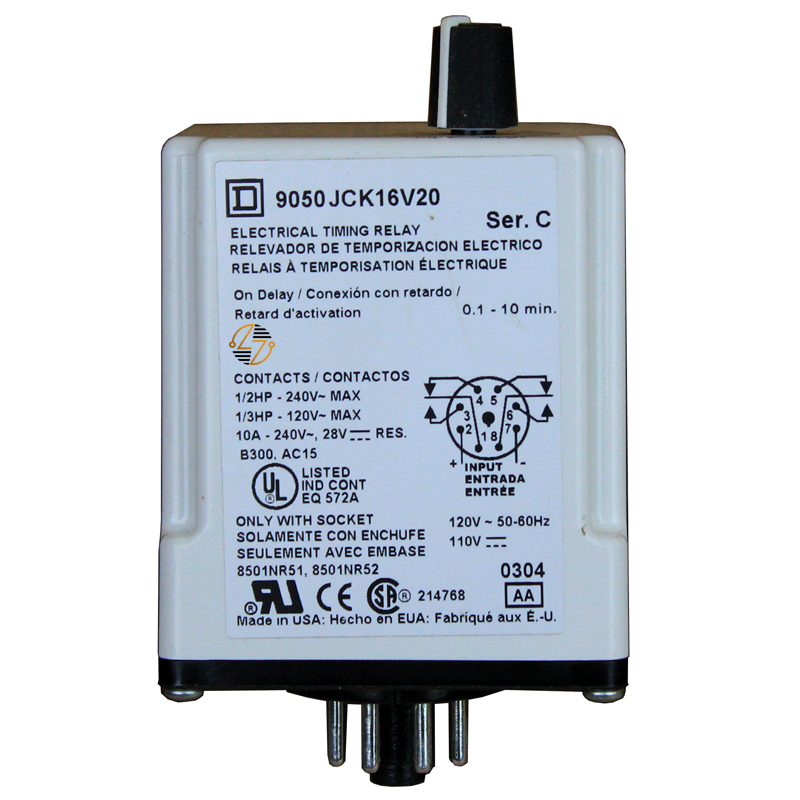

The Square D / Schneider Electric 9050JCK16V20 on-delay timer is designed for control systems that need simple, dependable timing control. It’s commonly used in industrial panels, HVAC equipment, motor controls, conveyors, and other applications where a delayed switching function is required. With an adjustable timing range from 0.1 to 10 minutes, this timer gives technicians an easy way to fine-tune system operation without complicated programming or setup.

Once power is applied, the timer starts counting down. After the selected delay period, the relay contacts change state. When power is removed, the contacts return to their normal position. The adjustment knob on the top of the timer makes timing changes quick during installation, troubleshooting, or routine maintenance.

The 9050JCK16V20 uses a plug-in design that works with 8501NR51 and 8501NR52 relay sockets, helping simplify replacement in existing systems. It can be mounted on a 35 mm DIN rail or directly to a panel depending on the application. Its compact size is helpful in control cabinets where space is limited, while the DPDT contact configuration and 10-amp rating support a wide range of industrial control tasks. Built for long-term service, this timer continues to be a dependable option for maintaining existing equipment and control systems.

Key Features and Benefits

• Adjustable Timing Control: Adjustable on-delay timing from 0.1 to 10 minutes.
• Dual Voltage Operation: Operates on 120 VAC or 110 VDC.
• DPDT Contact Configuration: DPDT contact configuration with 2 NO and 2 NC contacts.
• Plug-In Design: Plug-in style design for easier installation and replacement.
• Relay Socket Compatibility: Compatible with 8501NR51 and 8501NR52 relay sockets.
• Flexible Mounting Options: Can be mounted on DIN rail or directly to a panel.

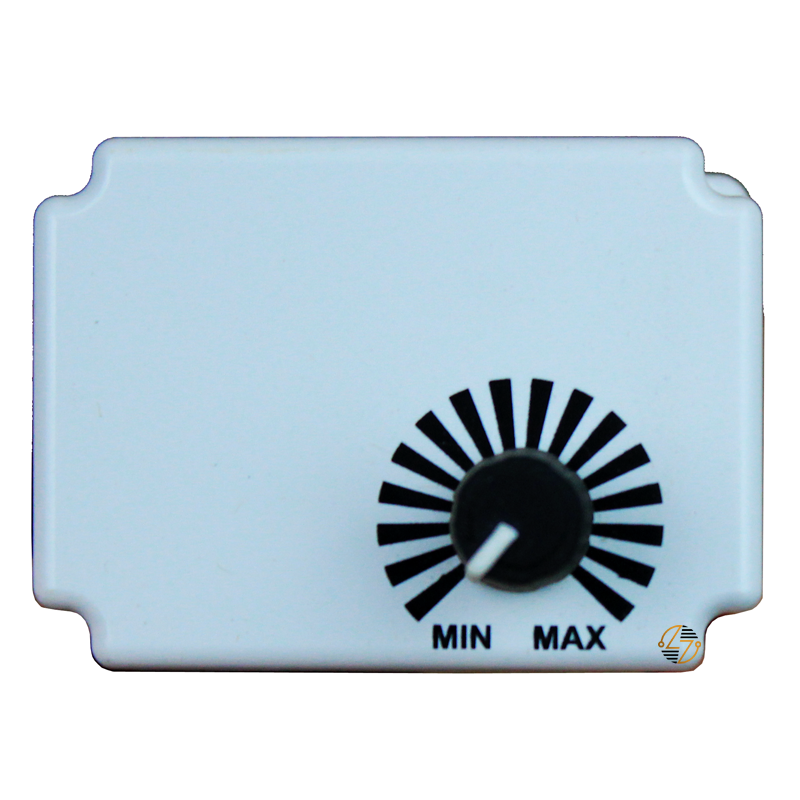

• Convenient Adjustment Access: Top-mounted timing adjustment knob.
• Industrial Control Rating: 10A contact rating for industrial control applications.
• Compact Cabinet Design: Compact design fits well in existing control panels.
• Long-Term Reliability: Designed for long-term industrial and commercial use.


Technical Specifications

• Catalog Number: 9050JCK16V20

• Product Type: Timer

• Timing Mode: On-Delay

• Timing Range: 0.1 to 10 Minutes

• Supply Voltage: 120 VAC / 110 VDC

• Power Consumption: 2 VA

• Current Rating: 10 A

• Switch Function: DPDT

• Contact Composition: 2 NO + 2 NC

• Contact Material: Silver Nickel

• Maximum Switching Voltage: 240 VAC

• Mounting Type: Socket Mount

• Number of Pins: 8

• Pin Shape: Tubular

• Compatible Relay Sockets: 8501NR51, 8501NR52

• Operating Temperature Range: -18°F to 150°F (-28°C to 66°C)

• Dimensions:
  • Height: 2.4 in
  • Width: 1.7 in
  • Depth: 4.09 in
• Country of Origin: United States


Material Compliance and Certifications

• Certifications: CE Certified, UL Listed, and UL Recognized.
• CSA Compliance: CSA Certified when used with the proper relay socket.
• Industrial Application Support: These certifications support use in many industrial and commercial electrical control applications.


Where It Works Best

• The 9050JCK16V20 timer is often used in motor control systems, HVAC controls, conveyor equipment, pump sequencing systems, industrial automation panels, manufacturing equipment, lighting control applications, commercial electrical systems, and legacy equipment maintenance and replacement projects.
