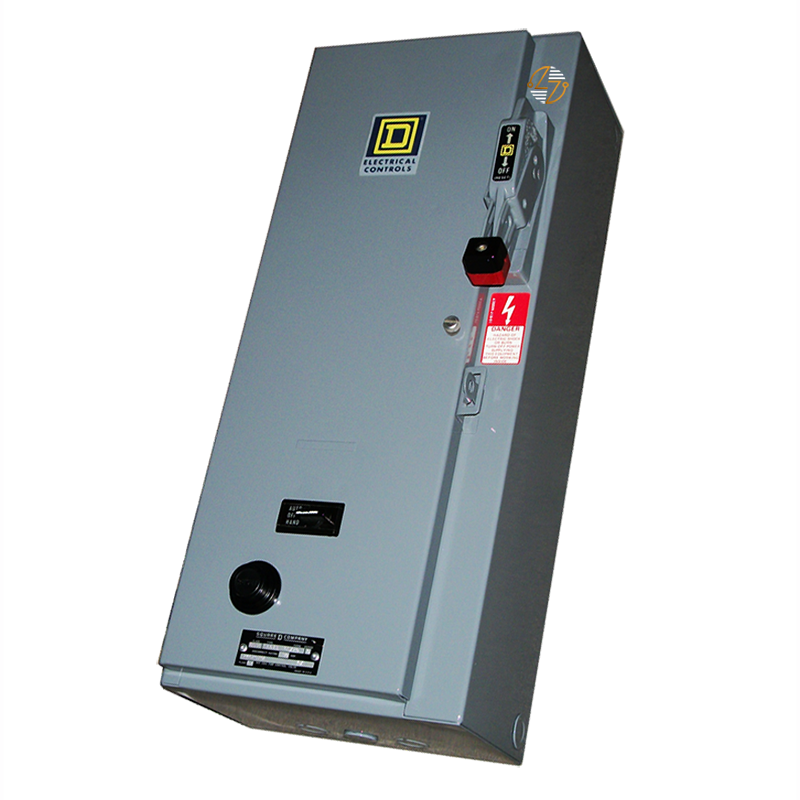

8538SBG12 - Square D Combination Starter

8538SBG12 - Square D Combination Starter

If you just need a reliable way to control and protect a motor without overthinking it, the 8538SBG12 combination starter gets the job done. It combines a contactor and overload protection into one enclosed unit, so you’re not juggling separate components or dealing with a complicated install.

This model is built on the 8536 frame, which has been around for a long time for a reason—it works. The 120V AC coil fits into most standard control setups, and the 3-pole design makes it a good match for typical three-phase applications. With a 3 HP rating at 230V, it’s commonly used in everyday equipment like pumps, fans, and small machinery.

The NEMA 1 enclosure is designed for indoor use, keeping the internal components protected while still being easy to access when you need to check or service it. Nothing flashy here—just a straightforward, dependable starter that does what it’s supposed to do.

Key Features and Benefits

• Combines motor control and overload protection in one unit
• 3-pole design for standard three-phase systems
• 120 VAC coil works with common control circuits
• NEMA 1 enclosure for indoor protection
• Built on the 8536 frame—widely used and field-proven
• Rated for 3 HP at 230V
• Simple setup and easy to maintain

Technical Specifications

• Part Number: 8538SBG12

• Type: Combination Starter

• Poles: 3

• Horsepower: 3 HP @ 230V

• Coil Voltage: 120 VAC

• Enclosure: NEMA 1 (Indoor)

• Frame Type: 8536

• Height: 28.06 in

• Width: 10.55 in

• Depth: 9.0 in


Material Compliance and Certifications

• This unit is built to meet standard expectations for industrial motor control equipment and is intended for use in systems designed in accordance with applicable electrical codes. Always check your local requirements to ensure proper compliance.

Where It Works Best

• You’ll typically see this starter used in:
• HVAC equipment
• Pumps and fan systems
• Light industrial machines
• Conveyor setups
• Replacement installs where a simple, all-in-one solution makes sense
