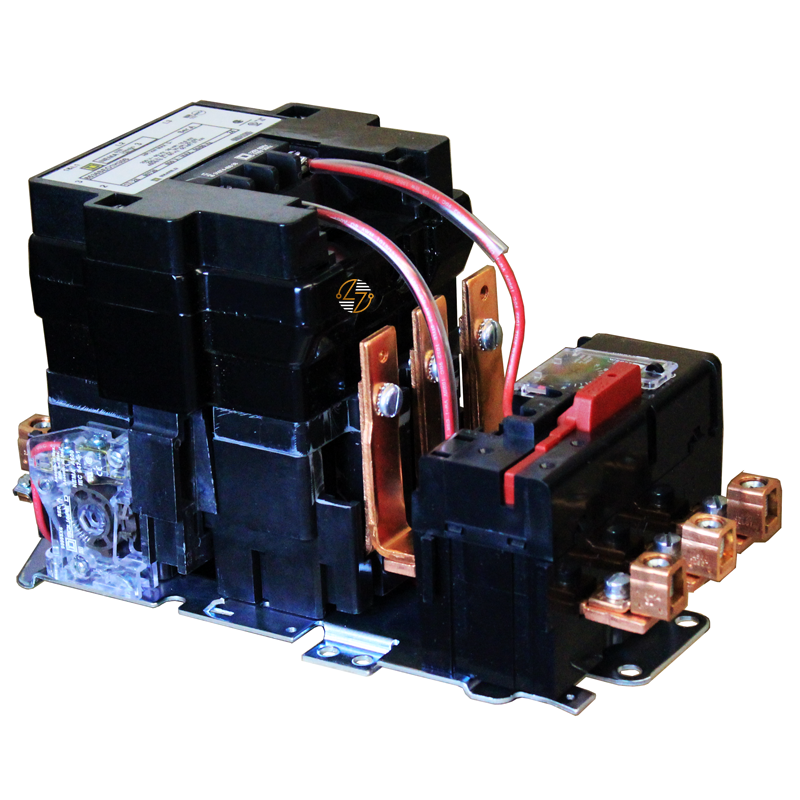

If you’re running critical equipment, you already know—motor control isn’t the place to cut corners. The 8536SEO1V02H30S NEMA Size 3 Motor Starter is built for exactly those situations where reliability matters every single day. Designed for full-voltage starting and stopping of AC squirrel cage motors, this unit gives you the kind of consistent, predictable performance that keeps operations moving without surprises.

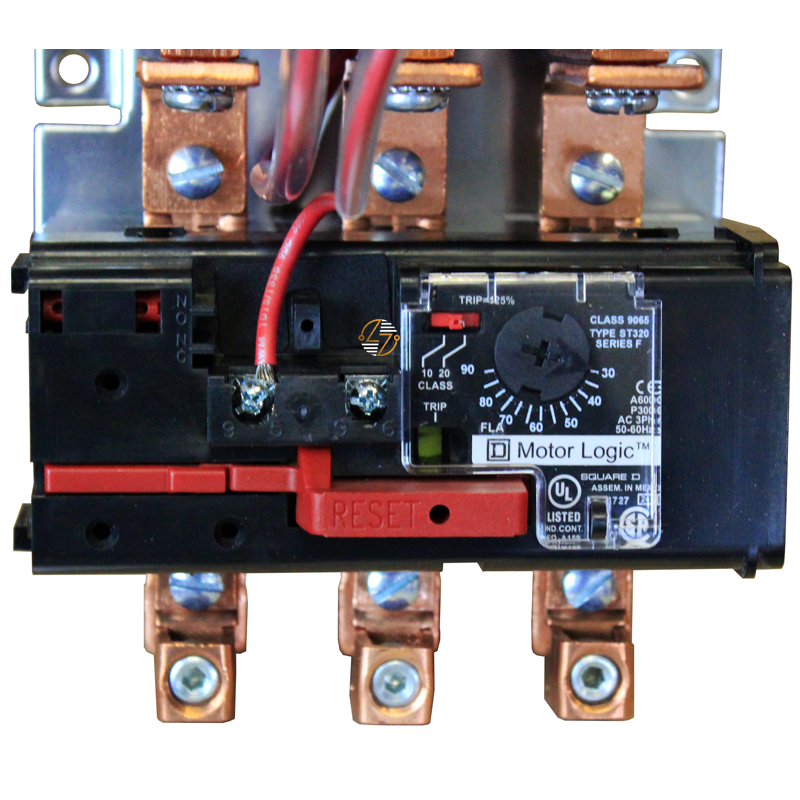

What really makes this starter stand out is its Motor Logic solid-state overload relay. Instead of guessing or reacting too late, it actively monitors current and helps protect your motor within a 30A to 90A range. That means fewer unexpected shutdowns, less wear on your equipment, and more control over your system. Pair that with a 100 kA short circuit current rating (SCCR)—when properly protected—and you’ve got a solution that’s ready for demanding industrial environments.

You also get flexibility where it counts. The 110/120 VAC coil (50/60 Hz) with separate control makes integration straightforward, whether you’re upgrading an existing setup or building something new. And because it’s an open-type device, you can configure it exactly how your application requires. For contractors, maintenance pros, and facility managers, this isn’t just another component—it’s a dependable part of keeping systems running smoothly.

Key Features and Benefits

• Reliable Motor Control – 90A rating with up to 50 HP at 460/575 VAC for demanding applications
• Smart Overload Protection – Motor Logic solid-state relay (Class 10/20) with adjustable 30–90A range
• High Fault Protection – Up to 100 kA SCCR with proper circuit protection
• Flexible Integration – 110/120 VAC coil with separate control circuit
• Built for Industrial Use – NEMA Size 3 construction designed for consistent performance
• Adaptable Design – Open device compatible with a wide range of accessories and panel builds

Technical Specifications

• Catalog Number: 8536SEO1V02H30S

• Product Type: NEMA Motor Starter (Type S)

• Starter Type: Non-Reversing

• NEMA Size: 3

• Rated Current: 90 Amps

• Poles: 3-Pole

• Maximum Voltage: 600V AC

• Phase: 3-Phase

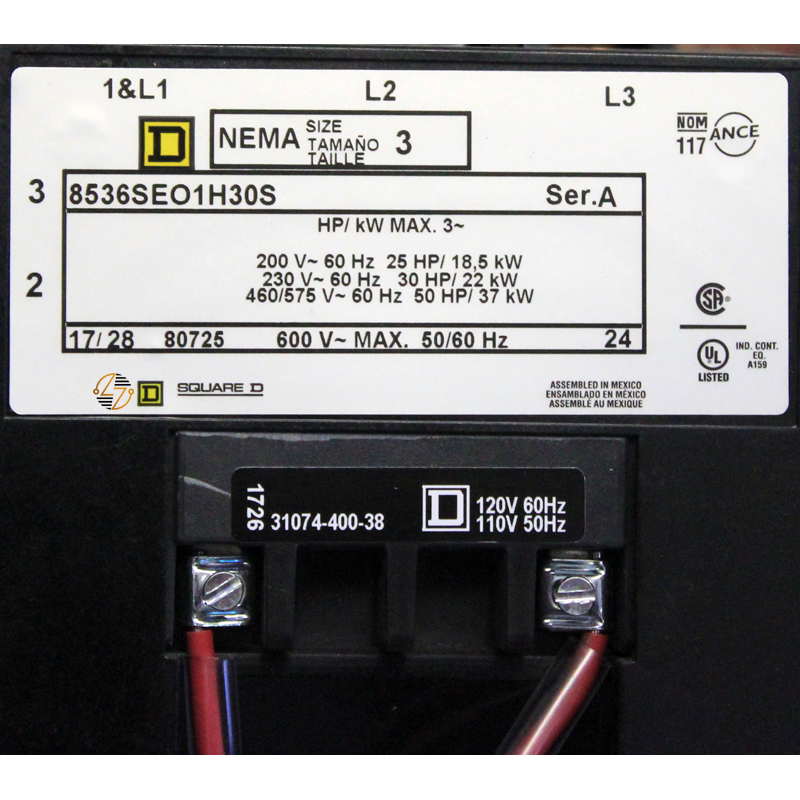

• Horsepower Ratings:25 HP @ 200V AC
  30 HP @ 230V AC
  50 HP @ 460/575V AC

• Overload Relay: Solid-State Motor Logic (Class 10/20), 30–90A range

• Coil Voltage: 110V AC (50 Hz) / 120V AC (60 Hz)

• Control Circuit: Separate control

• SCCR: Up to 100 kA (with proper protection)

• Terminal Type: Screw clamp

• Dimensions: 11.09 in (H) x 5.47 in (W) x 6.50 in (D)

• Enclosure: Open type (no enclosure)


Material Compliance and Certifications

• UL Listed – Meets U.S. safety standards
• CSA Certified – Approved for use in Canada
• NEMA Rated – Built to recognized industry standards
• TAA Compliant – Suitable for government and federal projects

Where It Works Best

• Industrial manufacturing systems and production lines
• HVAC equipment and large commercial climate control systems
• Water and wastewater treatment facilities
• Pump control applications and motor-driven systems
• Conveyor systems and material handling operations
• Facilities requiring high SCCR and dependable overload protection
