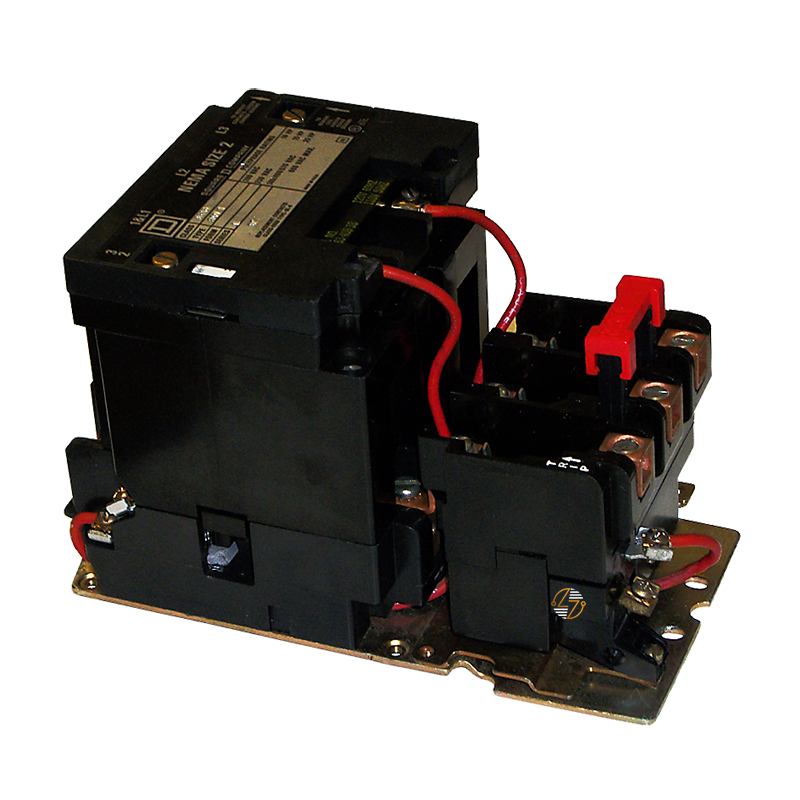

8536SDO6V02 - Square D Magnetic Contactor

8536SDO6V02 - Square D Magnetic Contactor

When you need a motor starter that’s dependable without being complicated, the 8536SDO6V02 is a solid choice. It’s built for full-voltage starting and stopping of AC squirrel cage motors, and it handles everyday industrial and commercial jobs without fuss. With a 45 amp rating and support for motors up to 7.5 HP at 230 VAC, it fits right into a wide range of single-phase applications.

What most people like about this unit is how straightforward it is. It’s a non-reversing NEMA Size 2 starter, so you’re not dealing with unnecessary complexity. At the same time, it still gives you the protection you expect. The melting alloy overload relay uses thermal units to sense overcurrent and help prevent motor damage—something that can save you from bigger headaches later on.

It also comes with a 110/120 VAC coil, which works well with common control circuits, making installation and integration easier. Add in its UL listing and CSA certification, and you’ve got a motor starter that meets recognized safety standards and is trusted across many types of facilities. Whether you’re replacing an older unit or setting up a new system, this one keeps things simple and reliable.

Key Features and Benefits

• Designed for full-voltage motor starting and stopping
• 45 amp capacity for common industrial applications
• NEMA Size 2 – a practical choice for mid-range motors
• Non-reversing operation keeps things simple
• Built-in overload protection helps reduce motor damage risk
• 110/120 VAC coil fits standard control setups
• 5 kA SCCR rating when properly protected
• Compatible with additional accessories if needed

Technical Specifications

• Catalog Number: 8536SDO6V02
• Product Type: Type S Motor Starter
• Starter Type: Non-Reversing
• NEMA Size: 2
• Rated Current: 45 Amps
• Poles: 2-Pole
• Maximum Voltage: 600 VAC
• Phase: Single Phase
• Horsepower Rating:3 HP @ 115 VAC
  7.5 HP @ 230 VAC
• Coil Voltage: 110V (50 Hz) / 120V (60 Hz)
• Overload Type: Melting Alloy (Type B Thermal Units)
• SCCR: 5 kA @ 600 VAC (with proper protection)
• Terminal Type: Screw Clamp
• Dimensions: 7.81” H x 4.31” W x 4.94” D
• Device Type: Open (no enclosure)

Material Compliance and Certifications

• UL Listed
• CSA Certified
• NEMA Rated
• TAA Compliant
• Meets standard safety expectations for motor control equipment

Where It Works Best

• HVAC systems
• Pumps and compressors
• Conveyor systems
• General manufacturing equipment
• Water and wastewater setups
