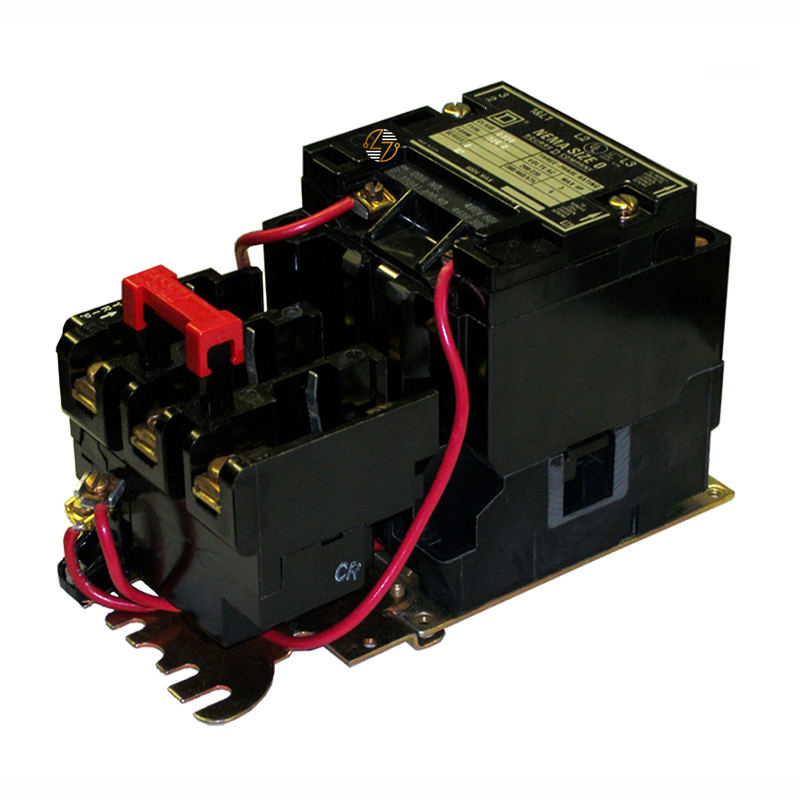

The Schneider Electric 8536SBO1V02 Type S NEMA Motor Starter is designed to give you reliable control over your single-phase AC squirrel cage motors. Whether you’re starting or stopping a motor, this compact, non-reversing starter handles the job with ease. Its NEMA Size 0 configuration can support motors up to 1 HP at 115 VAC or 2 HP at 230 VAC, making it perfect for everything from HVAC systems to industrial equipment. It also includes a melting alloy overload relay with Type B thermal units to protect your motor from overcurrent damage, giving you peace of mind knowing your equipment is safe.

This motor starter works with common control circuits, operating on a 110/120 VAC coil at 50/60 Hz, and has a maximum Short Circuit Current Rating (SCCR) of 5 kA at 600 VAC for added safety when paired with the proper circuit breakers or fuses. With its durable design, it’s an easy, low-maintenance solution for keeping your motors running smoothly.

Key Features and Benefits

• Efficient Motor Control: Ensures reliable starting and stopping for your single-phase motors, keeping things running smoothly.
• Built-in Protection: The melting alloy overload relay with Type B thermal units helps protect against overcurrent issues.
• Flexible Voltage: Operates on 110/120 VAC at 50/60 Hz, making it compatible with most control circuits.

Technical Specifications

• Rated Current: 18 A
• Number of Poles: 2
• Maximum Voltage Rating: 600 V AC
• Phase: Single-phase
• Horsepower Rating: 1 HP at 115 V AC; 2 HP at 230 V AC
• SCCR: 5 kA at 600 V AC (with proper protection)
• Coil Voltage: 110 V AC at 50 Hz; 120 V AC at 60 Hz
• Control Circuit Type: Common control circuit
• Terminal Type: Screw clamp terminals
• Enclosure Type: Open device (not rated)

Material Compliance and Certifications

• Certifications: UL Listed, CSA Certified, NEMA Compliant
• Environmental Commitment: Packaged in recycled cardboard and PVC-free construction.
• California Proposition 65: WARNING: This product contains chemicals such as lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.

Where It Works Best

• The Schneider Electric 8536SBO1V02 is a great option for a variety of environments. You’ll find it in HVAC systems, agriculture, manufacturing, and any place where dependable motor control and protection are needed.
