8502SDO2V02 - Square D Magnetic Contactor

8502SDO2V02 - Square D Magnetic Contactor

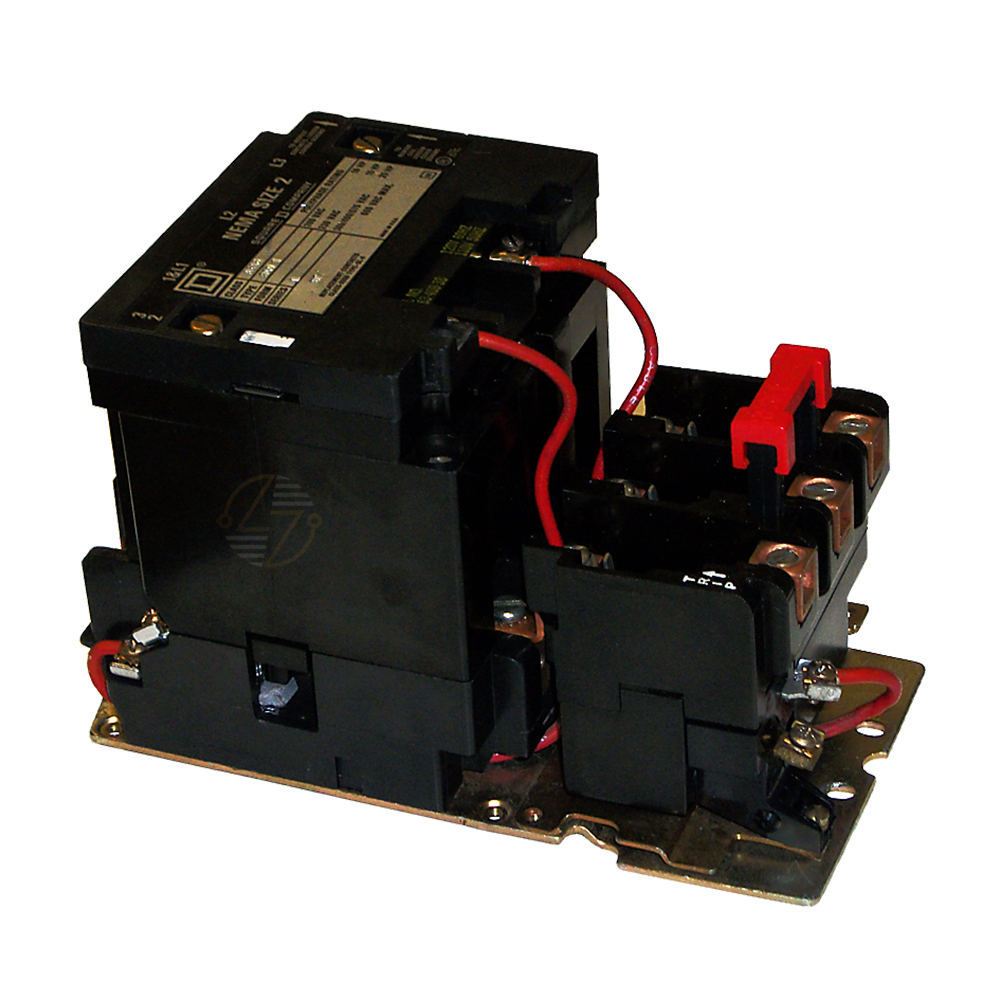

Upgrade your motor control systems with the Square D 8502SDO2V02S Magnetic Contactor, a high-performance, NEMA Size 2, three-phase solution engineered for long-lasting, reliable service in demanding industrial environments. Designed for full-voltage switching of motors, transformers, heating loads, and capacitors, this contactor handles up to 45 amps continuously at 600 VAC. With its 120 VAC coil, you get precise, independent control – perfect for building smarter, safer systems. Rugged screw‑clamp terminals and open-style housing make panel installation and maintenance a breeze, while a 100 kA SCCR (when combined with the right breakers) ensures peak resilience under high-fault conditions. Ideal for commercial motor control centers and HVAC setups, it's UL-listed and CSA-qualified for worldwide safety standards.

Key Features and Benefits

• Dependable Three-Phase, Non-Reversing Form S Design: Perfect for standard loads like motors, lighting, heating, and transformers.
• Robust 45 A Continuous Rating @ 600 VAC: Handles heavy-duty power applications without breaking a sweat.
• Independent 120 VAC Coil Control: Enables smart, separate control circuitry for advanced automation.
• High Short-Circuit Withstand (100 kA SCCR): With proper breakers, this contactor stands strong against electrical faults.
• Global Safety Certifications: UL-listed, CSA-certified, and CE marked to comply with global industry standards.
• User-Friendly Build: Open-style layout with screw-clamp terminals makes installation and servicing quick and easy.

Technical Specifications

• Part Number: 8502SDO2V02S
• Continuous Current Rating: 45 A
• Maximum Voltage Rating: 600 VAC
• Coil Voltage: 110 VAC @ 50 Hz / 120 VAC @ 60 Hz
• Poles: 3 (Form S), non-reversing
• Motor Horsepower:
  • 10 HP @ 200 VAC
  • 15 HP @ 230 VAC
  • 25 HP @ 460/575 VAC
• SCCR: 100 kA (with proper external protection)
• Terminal Type: Screw‑clamp
• Dimensions (H × W × D): 5.13 in × 4.31 in × 4.94 in
• Weight: ~5.7 lb (2.58 kg)
• Construction: Open-style, NEMA Size 2

Material Compliance and Certifications

• UL Listed under File E78351 (CCN NLDX)
• CSA Certified for use in industrial-grade applications
• CE Marked to satisfy international safety guidelines
• Eco-Conscious Packaging: Protected in ≥70% recycled cardboard

Suitability

• Perfect for engineers, electricians, and panel builders seeking a rugged contactor for industrial and commercial motor-control applications. Whether you’re building a new HVAC control panel, upgrading a motor control center, or operating high-power transformer circuits. It plays especially well with external overload relays and protective breakers to achieve its full short-circuit rating, making it the smart choice for compliant, space-efficient open-panel systems.
