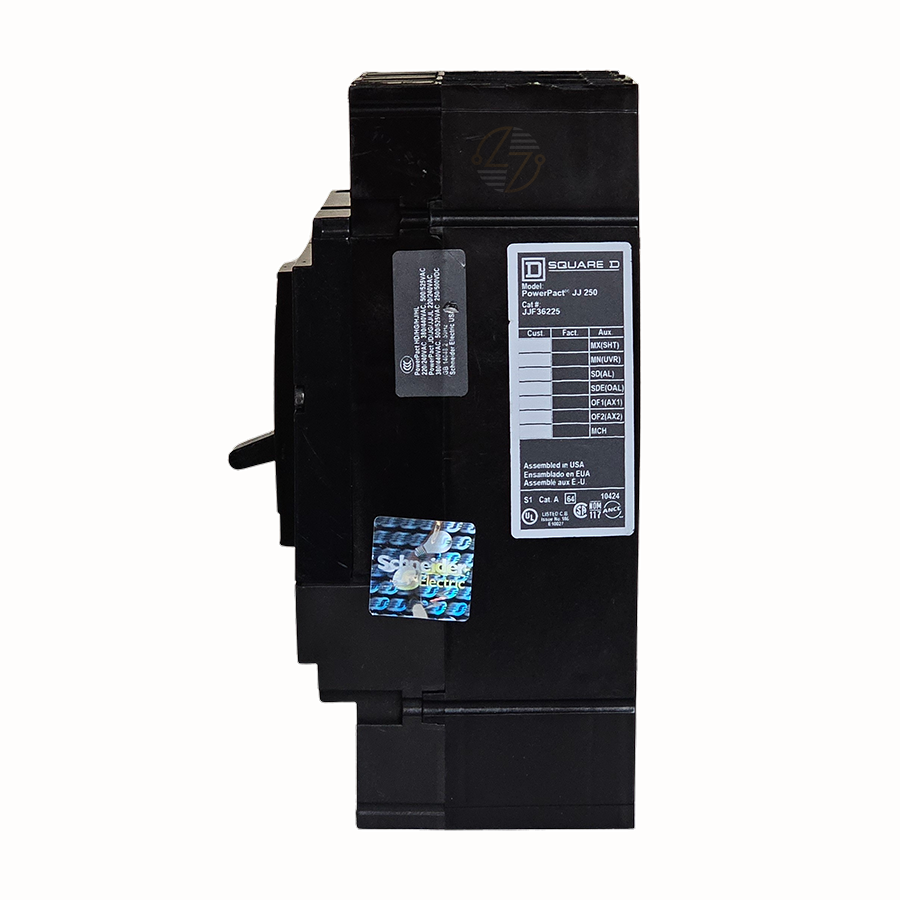

531741P1 - 200Amp JJF Circuit Breaker

531741P1 - 200Amp Circuit Breaker

The 531741P1 circuit breaker, part of the renowned PowerPacT J-Frame series, is engineered to deliver superior protection for your electrical systems. With a robust 200A rating and a 3-pole configuration, this breaker ensures optimal performance in high-demand environments. Designed to handle a maximum voltage of 600VAC and a breaking capacity of 25kA, the 531741P1 effectively safeguards against overloads and short circuits, making it an essential component for any industrial or commercial setup.

Key Features and Benefits:

• Thermal Magnetic Protection: Offers reliable thermal and magnetic trip units, ensuring precise response to overloads and short circuits.
• High Performance and Scalability: Features dual-break rotating contacts to minimize peak current during faults, along with a range of interchangeable trip units to support application evolution.
• Environmental Sustainability: Complies with RoHS and REACh standards, and is designed with sustainability in mind, reducing environmental impact.

Technical Specifications:

• Rated Current: 200A
• Number of Poles: 3
• Breaking Capacity: 25kA at 600VAC, 65kA at 480VAC, 100kA at 240VAC
• Voltage Rating: 600VAC, 50/60 Hz
• Continuous Current Rating: 80%
• Trip Unit Technology: Thermal-magnetic

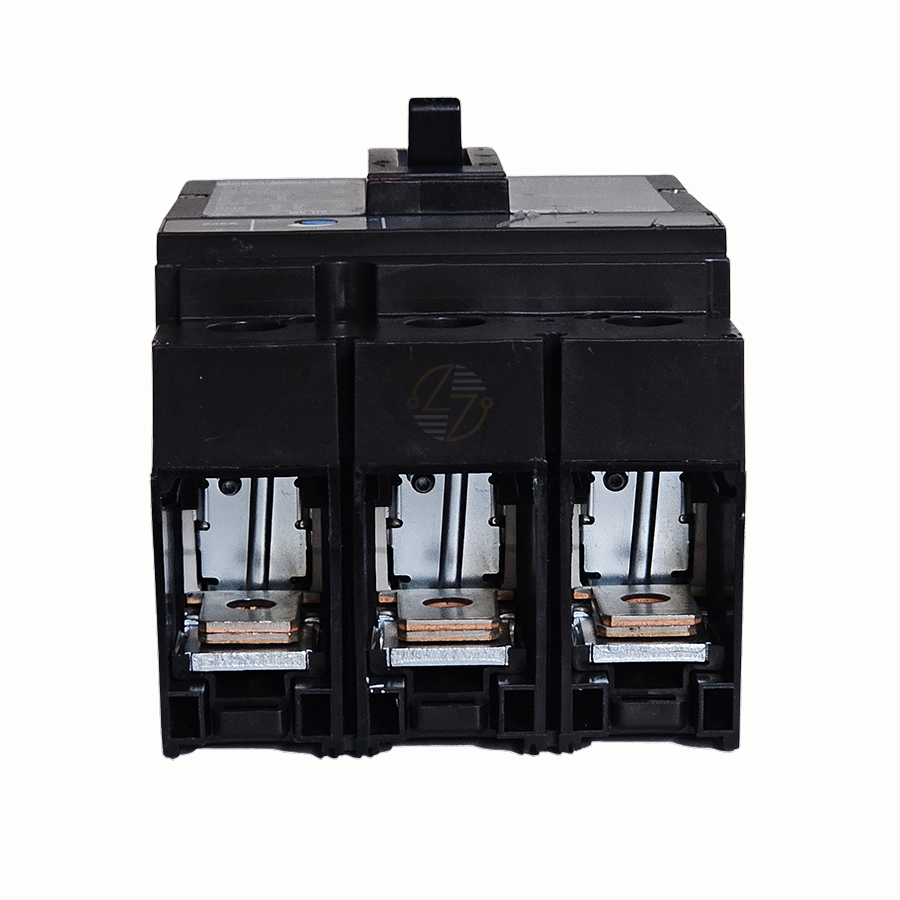

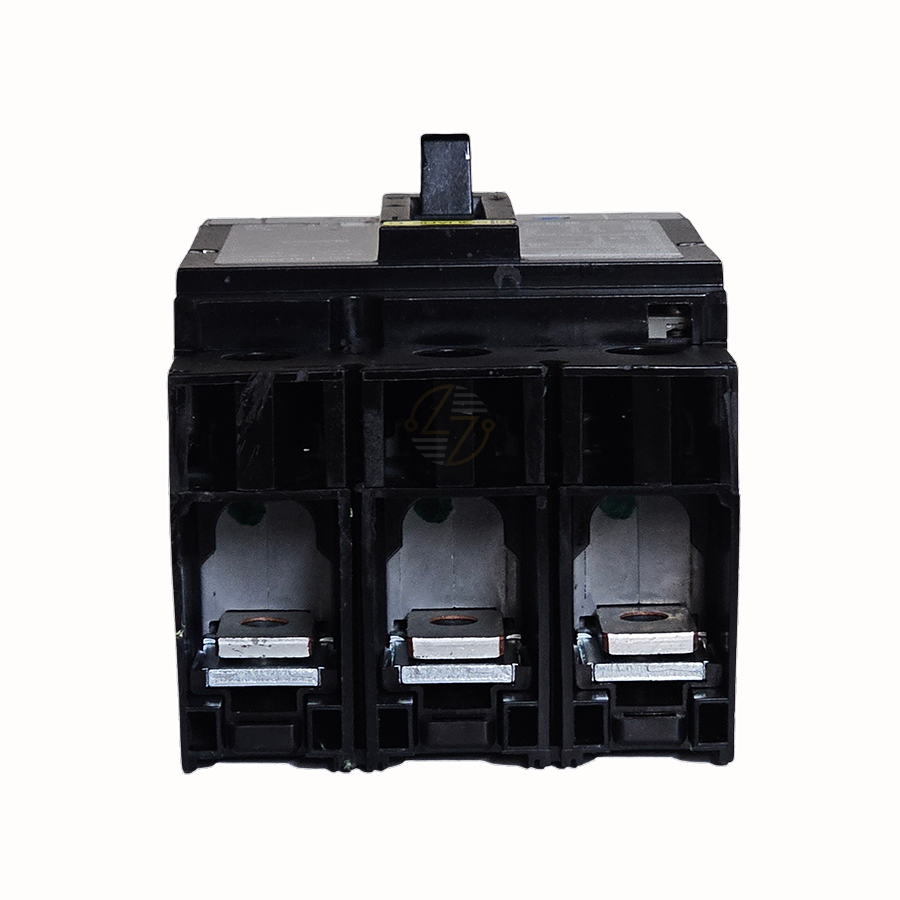

• Mounting Mode: Unit mount with lugs on both line and load sides
• Dimensions: Height: 7.52 in, Width: 4.09 in, Depth: 3.39 in
• Weight: 5.3 lb

Material Compliance and Certifications:

• Certifications: UL, CSA, NOM, IEC
• Standards Compliance: Meets UL 489, CSA C22.2, NOM-003-SCFI-2000, IEC 60947-2
• Environmental Labels: RoHS and REACh compliant, Green Premium‰ã¢ certified

Suitability:

• Ideal for protecting electrical systems in commercial and industrial applications, the 531741P1 circuit breaker is built to meet the highest safety and performance standards.

Equip your system with the 531741P1 circuit breaker to experience unparalleled protection, performance, and sustainability.
