3VA5220-6EC31-0AA0 - HFAS 200 Amp Circuit Breaker

3VA5220-6EC31-0AA0 - HFAS 200 Amp Circuit Breaker

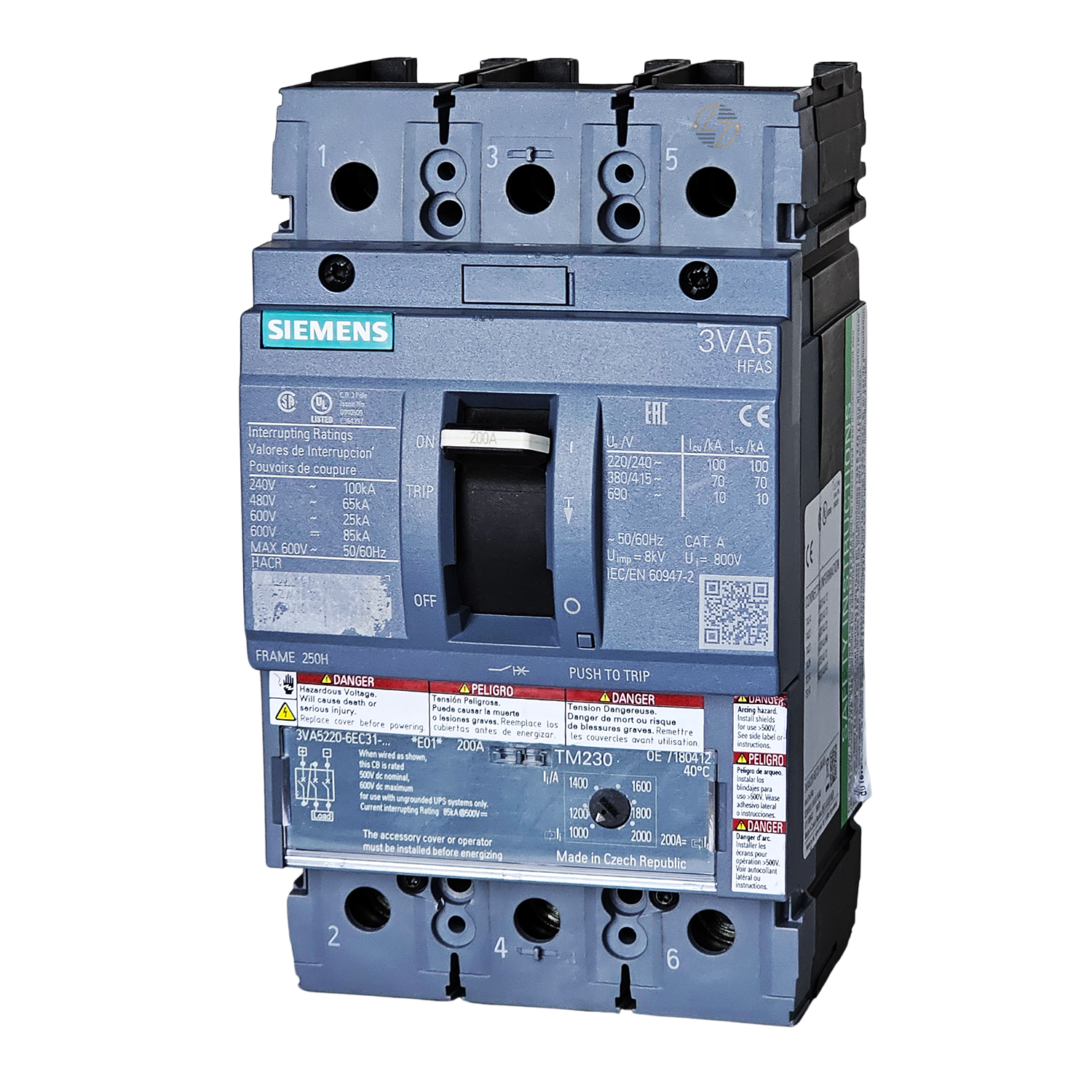

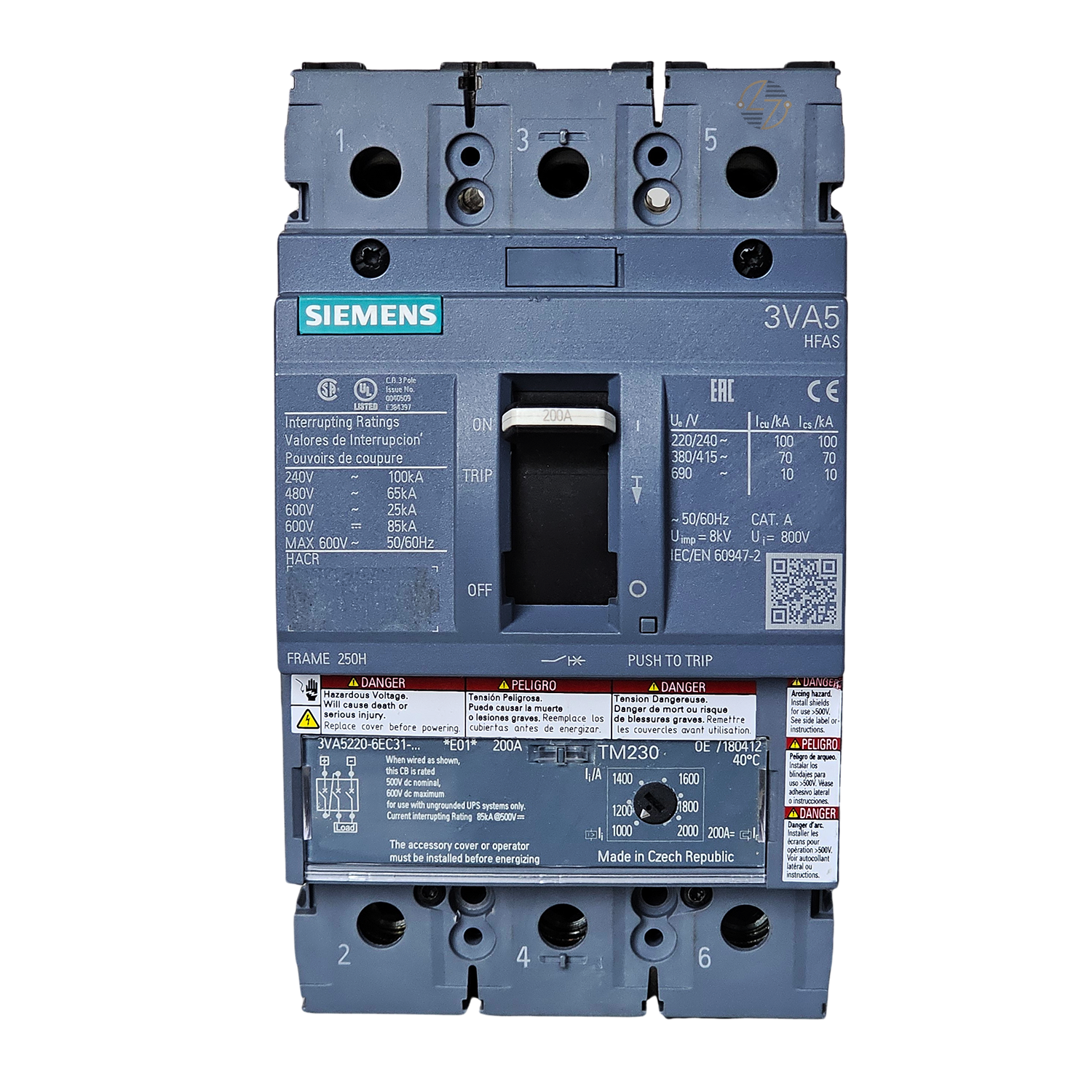

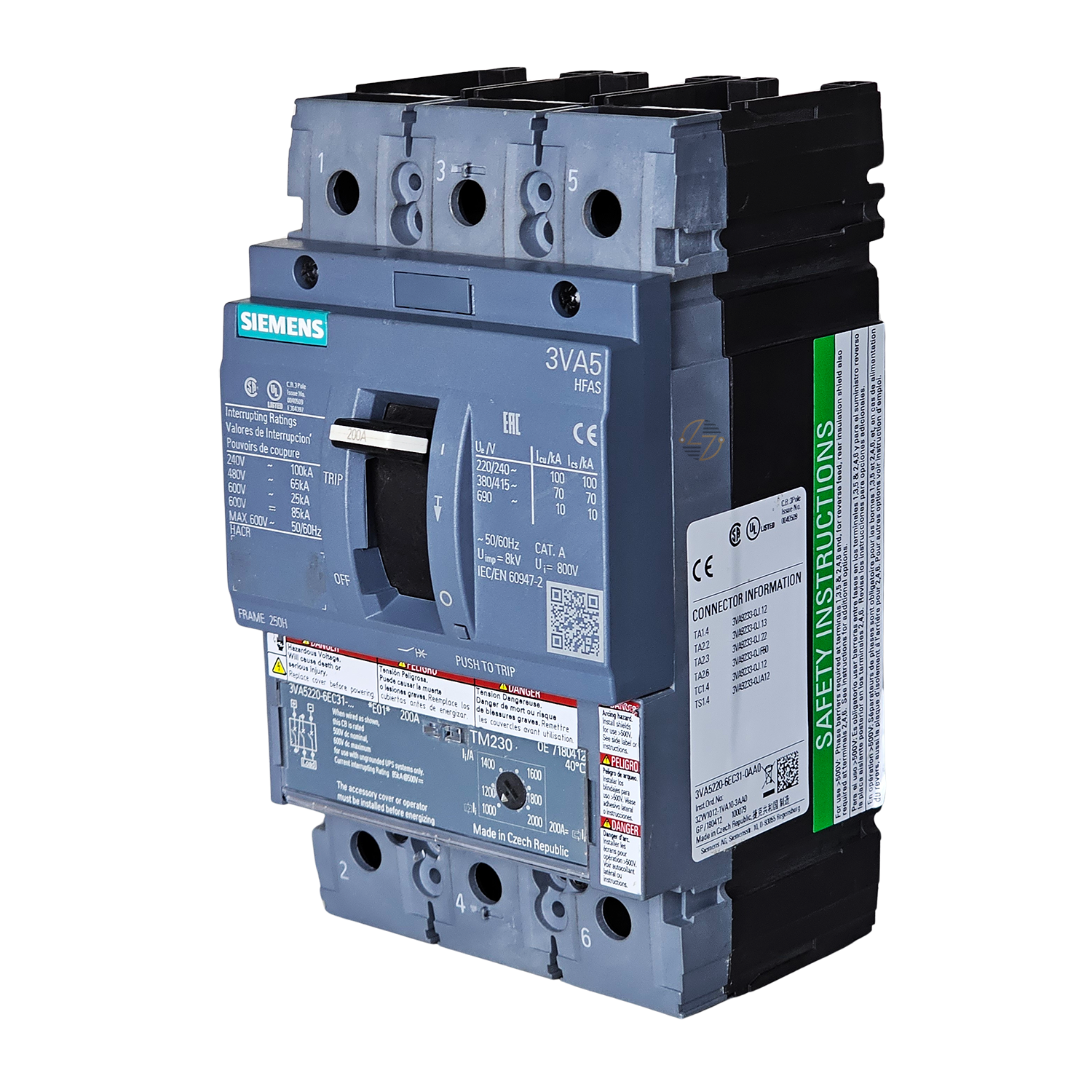

The Siemens 3VA5220-6EC31-0AA0 is one of those breakers you spec when you just want it handled—no surprises later. It’s a 200 amp, 3-pole unit built on the 3VA5 platform, and it’s meant for real-world electrical systems where things don’t always go perfectly. With a 65kA interrupting rating at 480V, it’s ready for higher fault conditions, so you’re not cutting it close. And instead of adjustable settings that can get misconfigured, this one uses a fixed thermal-magnetic trip unit. That means what you install is what you get—steady, predictable protection without needing to mess with it. It’s a straightforward breaker, but in a good way. Install it, wire it up, and move on to the next job.

Key Features and Benefits

• 200 Amp capacity that fits a wide range of commercial and industrial loads
• 65kA interrupting rating @ 480V for handling serious fault conditions
• 3-pole design for standard three-phase systems
• Thermal-magnetic trip (TM230) covers both overloads and short circuits
• Fixed trip settings—no adjustments, no second-guessing
• H-class interrupting rating (HFAS) for tougher applications
• Compact footprint that doesn’t eat up panel space

Technical Specifications

• Part Number: 3VA5220-6EC31-0AA0
• Series: 3VA52 (3VA5 platform)
• Amperage: 200A
• Poles: 3
• Interrupting Rating: 65kA @ 480V
• Voltage Rating: Up to 480V
• Trip Unit: Thermal Magnetic (TM230)
• Overload Protection (Ir): 200A (fixed)
• Instantaneous Trip (Ii): 10× In
• Frame Size: 250
• Dimensions: 9.65” H × 6.3” W × 5.9” D

Material Compliance and Certifications

• This breaker is UL listed, so it meets the standard requirements for safety and performance in North American electrical systems. It’s built to do the job consistently, whether it’s in a new install or replacing existing gear.

Where It Works Best

• You’ll typically see this model used in:
• Commercial electrical panels
• Industrial equipment feeds
• Manufacturing facilities
• Distribution systems in larger buildings
• It makes the most sense in setups where you want solid protection but don’t need adjustable trip settings—just something dependable that does exactly what it’s supposed to do.
