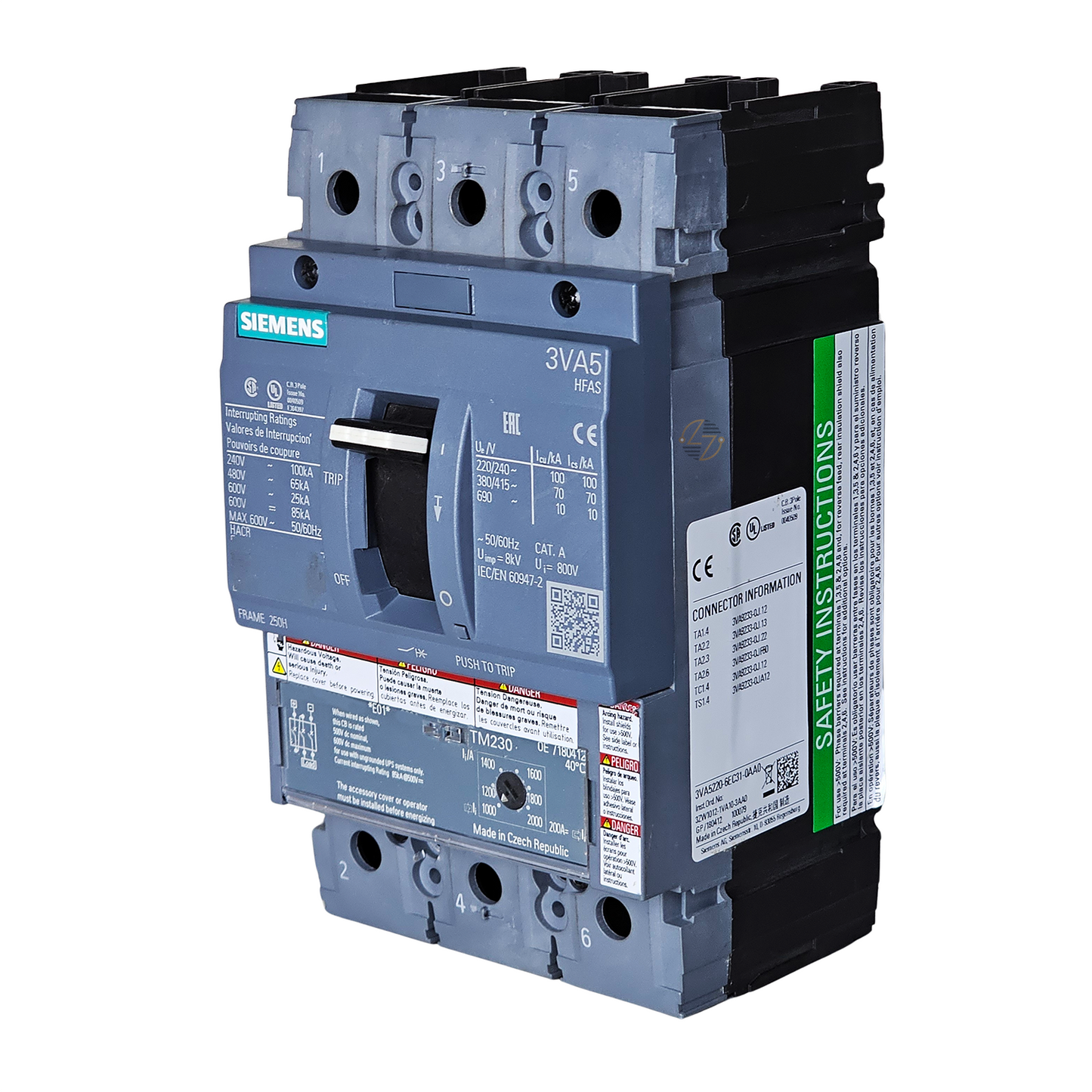

3VA5210-6EC31-0AA0 - HFAS 100 Amp Circuit Breaker

3VA5210-6EC31-0AA0 - HFAS 100 Amp Circuit Breaker

Not every job calls for something complicated. Sometimes you just need a breaker that’s going to trip when it should, stay out of the way when it shouldn’t—and hold up over time. That’s where the Siemens 3VA5210-6EC31-0AA0 fits in. This is a 100 amp, 3-pole breaker built on Siemens’ 3VA5 frame, and it’s made for standard three-phase systems you’ll see in commercial buildings and light industrial setups. It uses a thermal magnetic trip, so it reacts differently depending on the problem—slower for overloads, instant for faults. That’s exactly what you want in day-to-day operation. The settings are fixed, which a lot of guys actually prefer. 100A on the overload, 10x on the instantaneous—no tweaking, no second-guessing. Install it and move on. With a 35kA rating at 480V, it’s more than capable for most applications in its class. It’s not oversized, not undersized—it just lands right where most systems need it.

Key Features and Benefits

• Thermal magnetic trip—simple, proven, and dependable
• 100A rating that fits common commercial loads
• 35kA @ 480V interrupting capacity for solid fault protection
• 3-pole design for three-phase power systems
• Fixed trip settings—no setup time, fewer mistakes
• Compact enough to work into tight panels
• Part of the well-known Siemens 3VA5 line

Technical Specifications

• Part Number: 3VA5210-6EC31-0AA0

• Series: 3VA52

• Poles: 3

• Amperage: 100A

• A.I.C. Rating: 35kA @ 480V

• Trip Type: Thermal Magnetic (TM230)

• Overload (Ir): 100A (fixed)

• Instantaneous (Ii): 10x In (fixed)

• Dimensions:
  • Height: 9.65 in
  • Width: 6.3 in
  • Depth: 5.9 in

Material Compliance and Certifications

• Built to meet UL standards for molded case circuit breakers
• Designed for use in code-compliant electrical systems
• Suitable for commercial and industrial installations

Where It Works Best

• Commercial panelboards and distribution systems
• Light industrial equipment
• Tenant improvements and retrofits
• Replacing an existing 3VA5 unit
• Any setup where you need straightforward, reliable protection without extra features
