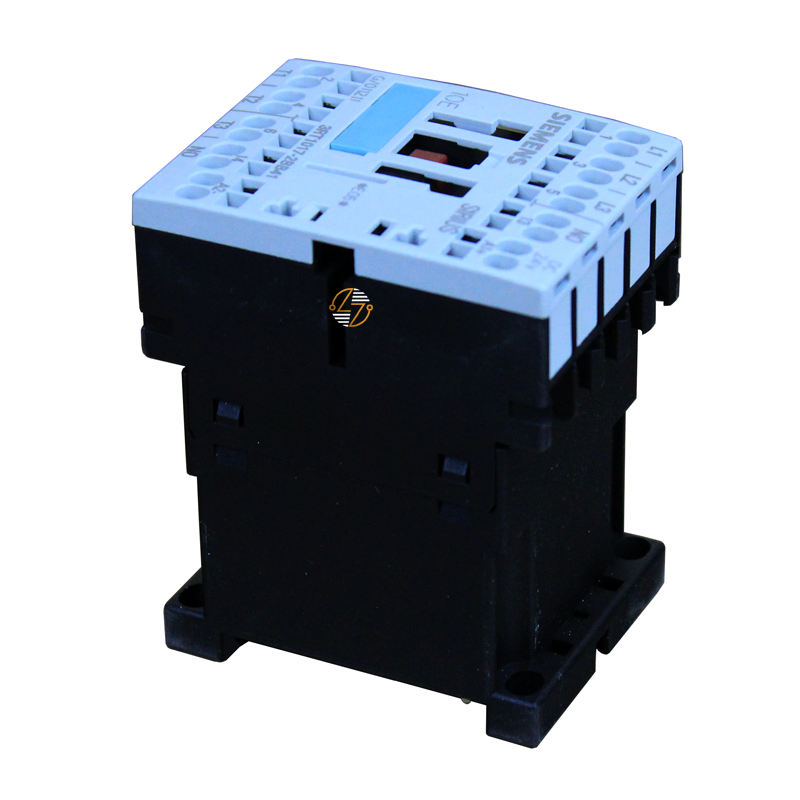

3RT1017-2BB41 - Siemens Contactor

3RT1017-2BB41 - Siemens Contactor

If you’re maintaining or servicing an existing motor control system, you don’t need guesswork—you need a contactor that fits, performs, and installs without headaches. The Siemens 3RT1017-2BB41 power contactor delivers exactly that. Designed for AC-3 applications up to 12 amps, this unit handles motor loads up to 5.5 kW at 400V, making it a dependable choice for a wide range of industrial control setups.

Its compact S00 frame size makes it easy to integrate into tight panels, while the 24V DC coil aligns with standard low-voltage control circuits found in many systems. Installation is straightforward thanks to spring-type terminals, which provide a firm, vibration-resistant connection without the need for constant retightening. The built-in 1 normally open (NO) auxiliary contact adds flexibility for signaling or interlocking, helping you keep your control logic clean and efficient.

This contactor is built with durability in mind—designed to handle repeated switching cycles and keep systems running smoothly over time. Whether you’re replacing an existing unit or maintaining legacy equipment, the 3RT1017-2BB41 offers the right combination of fit, function, and reliability to keep your operation moving.

Key Features and Benefits

• Rated 12A (AC-3) for reliable motor control applications
• Supports motors up to 5.5 kW at 400V
• 3-pole design for standard three-phase systems
• Includes 1 NO auxiliary contact for added control flexibility
• 24V DC coil compatible with common control circuits
• Spring-type terminals for secure, low-maintenance wiring
• Compact S00 frame fits easily into existing panels
• Built to handle frequent switching in demanding environments

Technical Specifications

• Catalog Number: 3RT1017-2BB41
• Contactor Type: Power Contactor
• Utilization Category: AC-3
• Rated Operational Current: 12 A
• Motor Rating: 5.5 kW @ 400V
• Poles: 3
• Auxiliary Contacts: 1 NO
• Coil Voltage: 24V DC
• Terminal Type: Spring-type
• Frame Size: S00
• Dimensions: 2.5 x 1.969 x 3.031 inches
• Weight: 0.575 lb

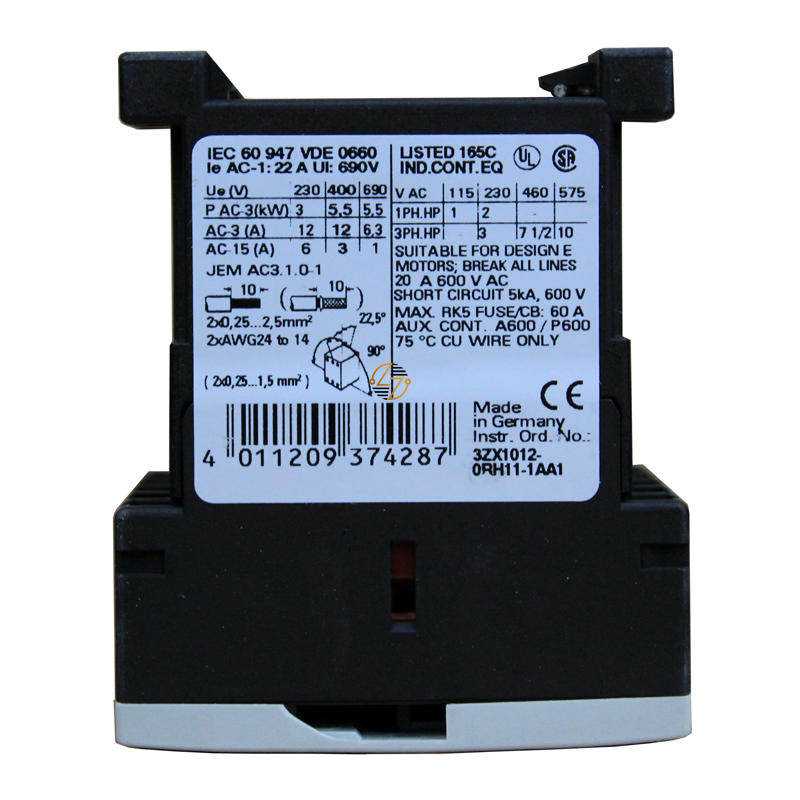

Material Compliance and Certifications

• Manufactured in accordance with IEC standards for industrial control equipment
• Designed for use in compliant motor control and automation systems
• Meets applicable electrical safety and performance requirements

Where It Works Best

• Motor starters and control panels
• HVAC systems and compressors
• Pumps, fans, and conveyor systems
• Industrial automation equipment
• OEM machinery and maintenance applications
• Facilities maintaining Siemens-based control systems
