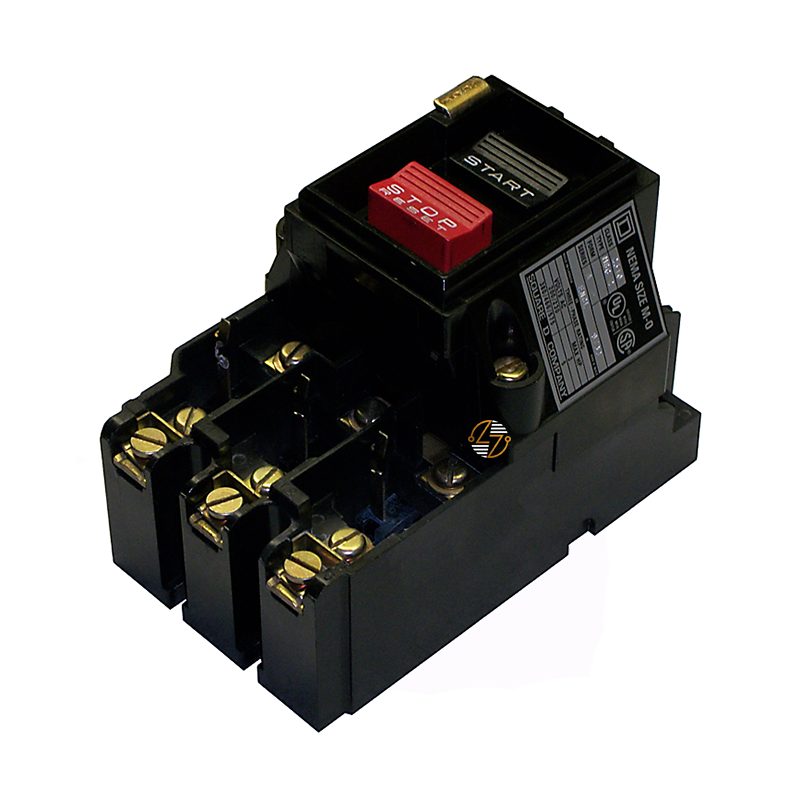

2510MBG2 - Square D Manual Starter

2510MBG2 - Square D Manual Starter

The Schneider Electric 2510MBG2 is a rugged and cost-effective manual motor starter engineered for direct, reliable control of small to medium-sized motors where low-voltage protection is not required. Designed with a 3-pole configuration and capable of handling up to 5 horsepower at 380–575VAC in 3-phase systems, this starter is perfect for industrial and commercial environments where simplicity and durability are top priorities.

Key Features and Benefits

• Manual Starter Simplicity: Provides direct control of motor operation without requiring complex circuitry or low-voltage protection systems.
• Durable Overload Protection: Equipped with Schneider’s reliable melting alloy thermal units for safe motor operation.
• High Voltage Capacity: Rated for up to 600VAC, supports up to 5HP at 380–575VAC 3-phase.
• Indoor-Use Enclosure: Housed in a NEMA 1 enclosure, suited for dry and clean industrial environments.
• Stock Availability: Normally stocked in distribution facilities for quick deployment and reduced downtime.

Technical Specifications

• Enclosure Type: NEMA 1

• Starter Type: Manual, Non-Reversing

• NEMA Size: M0

• Voltage Rating: Up to 600VAC

• Horsepower Rating: 5 HP @ 380–575VAC (3-Phase)

• Poles: 3

• Overload Protection: Melting Alloy Thermal Units


Material Compliance and Certifications

• Certifications: UL, CSA
• Environmental Suitability: Indoor use only, NEMA 1 rated

Suitability

• The 2510MBG2 is perfect for applications such as small conveyor belts, pumps, fans, and workshop machinery, where cost-effective, localized motor control is needed without sophisticated automation. It’s a go-to solution for straightforward manual starting in light-duty industrial settings.
