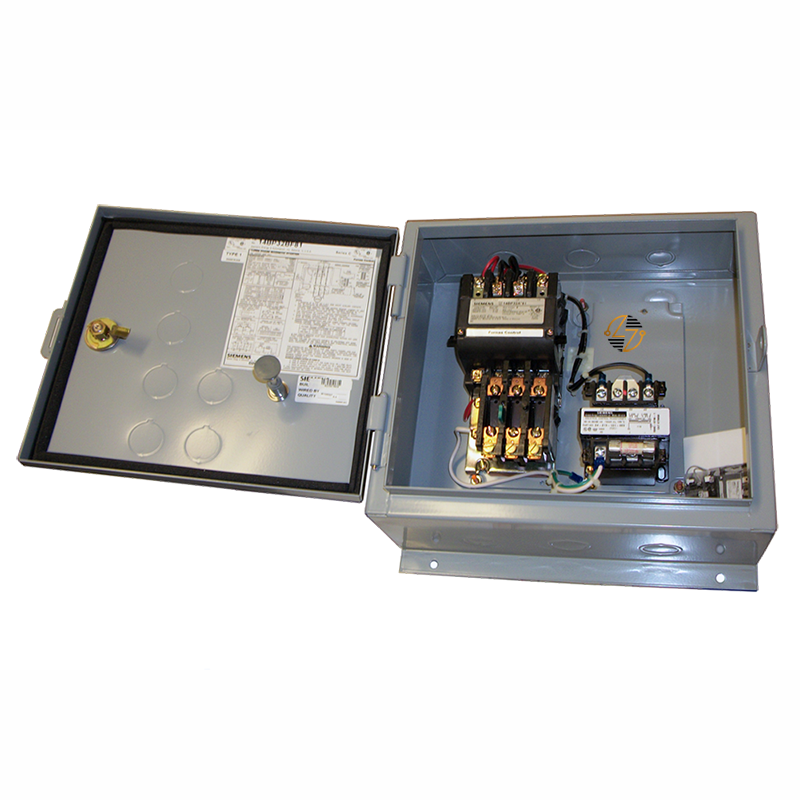

14BP32BF81 - Siemens Magnetic Starter

14BP32BF81 - Siemens Magnetic Starter

The Siemens 14BP32BF81 is a Size 00 full-voltage non-reversing motor starter used in commercial and industrial motor control systems. Designed for 3-phase applications with a 120V control coil, it includes an ambient-compensated bimetal overload relay to help protect your motors from overload conditions during normal operation. The surface-mount design and screw-type terminals make it a practical fit for existing control panels and enclosed motor starter applications.

Built for compatibility with existing FVNR systems, it helps maintain the original form and function of older motor control setups while providing straightforward installation and maintenance.

Key Features and Benefits

• Full-voltage non-reversing motor starter
• Size 00, 3-phase configuration
• 120V AC control coil
• Ambient-compensated bimetal overload relay
• Screw-type terminal connections
• Surface-mount installation
• Designed for existing FVNR motor control systems
• Built for long-term use in industrial environments


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: 14BP32BF81

• Product Type: FVNR Motor Starter

• NEMA Size: 00

• Phase: 3-Phase

• Control Voltage: 120V AC

• Operational Current: 9 Amps

• Maximum Voltage: 600V AC

• Horsepower Ratings:
  • 1.5 HP at 200–230V
  • 2 HP at 460–600V
• Mounting Style: Surface Mount

• Terminal Type: Screw-Type

• Dimensions:
  • Height: 11 in
  • Width: 7 in
  • Depth: 5 in
• Weight: 7.606 lbs.


Material Compliance and Certifications

• NEMA ICS 2 Compliant
• UL 508 Listed
• CSA 22.2 No. 14 Certified


Where It Works Best

• Motor control panels
• HVAC systems
• Pump applications
• Conveyor systems
• Manufacturing equipment
• Indoor industrial enclosures
• Existing FVNR starter replacements
